Fasco

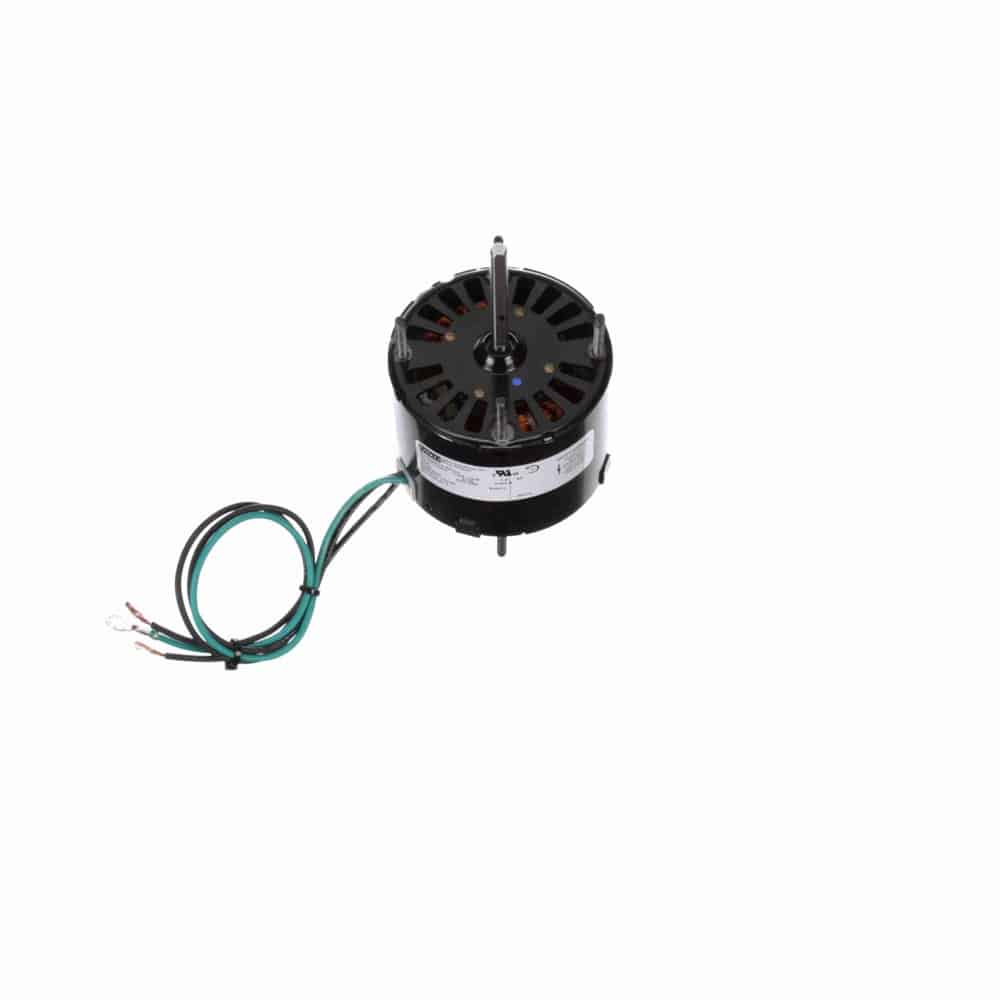

1/70HP ShP 3.3″ 3000 CCWSE 115V
Mfr # D033 | Wright’s # FAS D033
1/70HP Ventilation Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
$86.51
Product Information
Brand Fasco
Mfr # D033
Wright's # FAS D033
Country of Origin MEX
Specifications
C Dim 5.33"
Electrical Type Shaded Pole
Enclosure OAO
Frame 3.3"
Frequency 60 Hz
HP 0.01 HP
HP2 1/70 HP
Insulation Class B
kW 0.01kW
Material Steel
Max Ambient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.59
Rated Voltage 115
Rotation Counterclockwise Shaft End
RPM 3000
Service Factor 1
Shaft Diameter 0.25"
Starting Method
Description
Fan and Blower Duty Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End End-Frame and Lead End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
120V
