Fasco
1/25HP ShP 3.3″ 1550 CCWSE 115V
Mfr # D031 | Wright’s # FAS D031

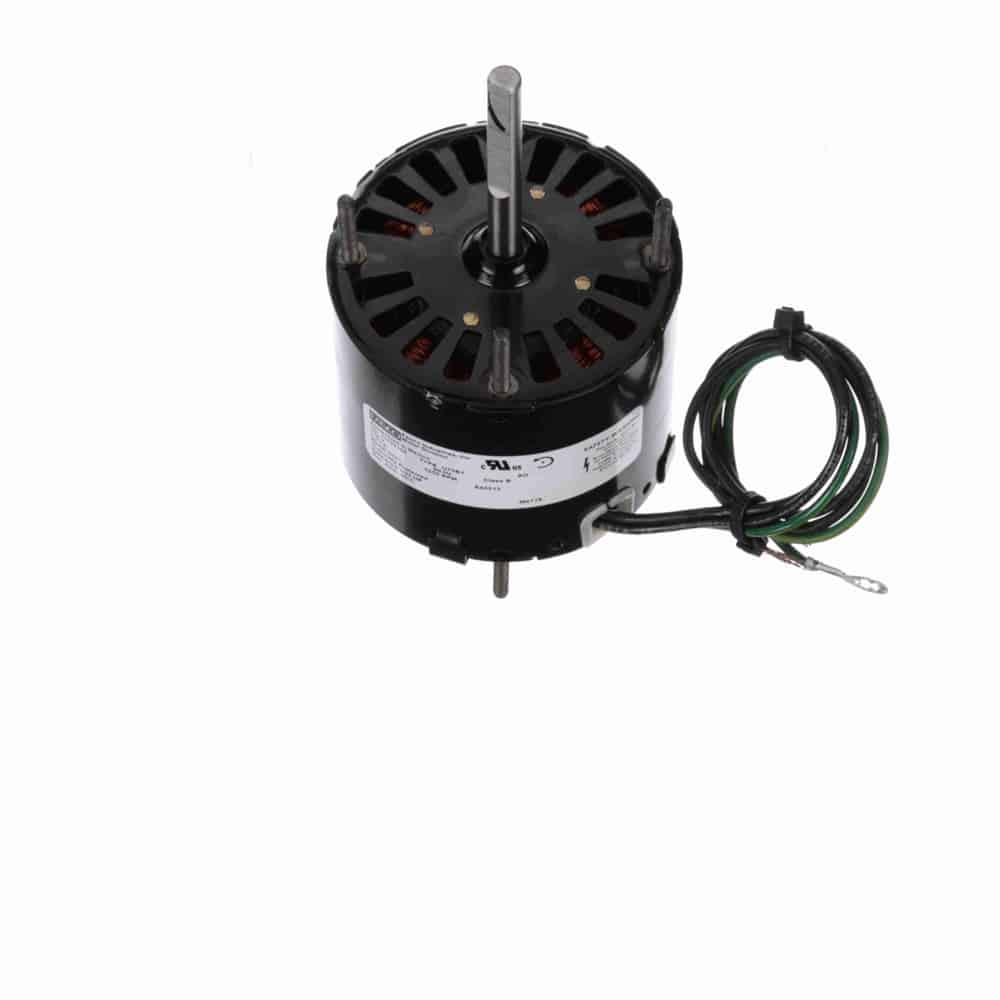

1/25HP Ventilation Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
$72.14
Product Information
Brand
Fasco
Mfr #
D031
Wright's #
FAS D031
Country of Origin
MEX
Specifications
C Dim
5.62"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.04 HP
HP2
1/25 HP
Insulation Class
B
kW
0.03kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.71
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.312"
Starting Method
Description
Fan and Blower Duty Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End End-Frame and Lead End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
120V
