Elco

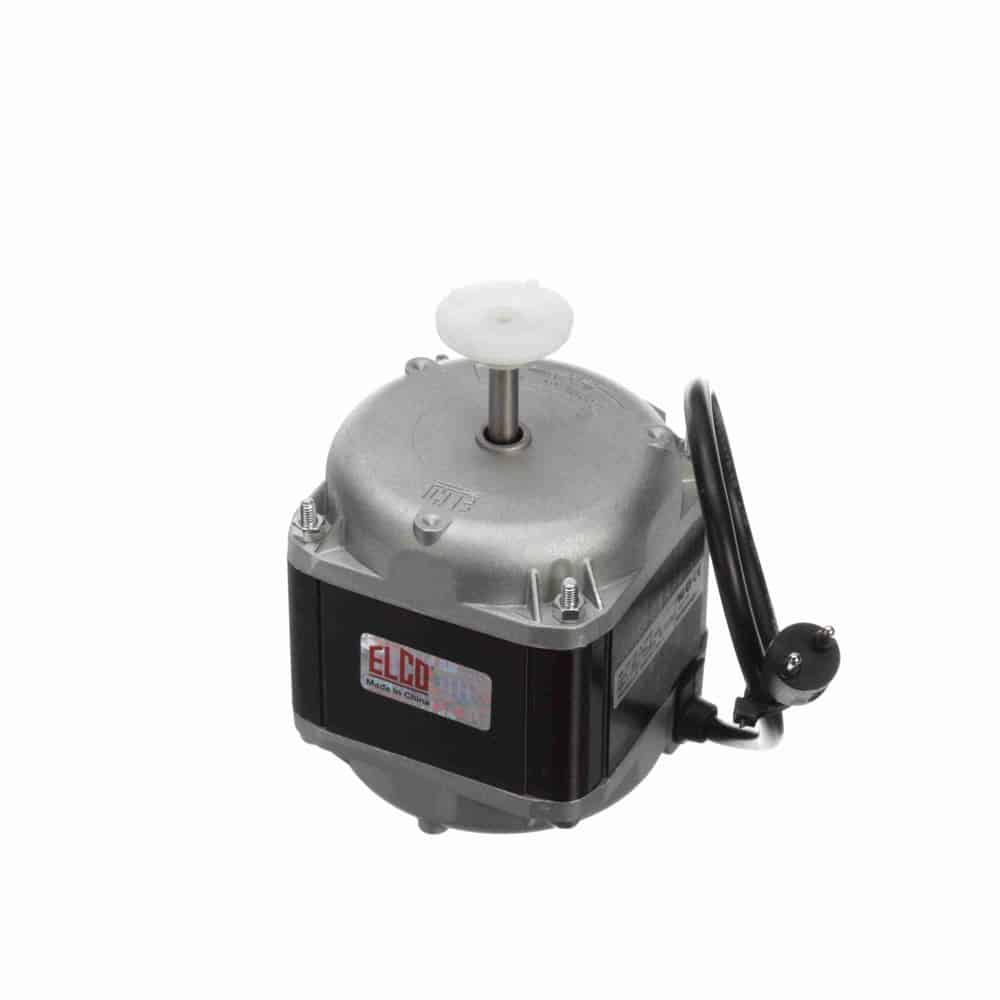

34W ShP 1550 CWLE 115V 0.8A
Mfr # EC34W230 | Wright’s # ELC EC34W230
34 Watt Refrigeration Motor, 1 Phase, Unit Bearing Frame, 1550 RPM, Shaded Pole, 115V, TEAO Enclosure, Aluminum
$127.52
Product Information
Brand
Elco
Mfr #
EC34W230
Wright's #
ELC EC34W230
Specifications
C Dim
4.2"
Electrical Type
Shaded Pole
Enclosure
TEAO
Frame
UNIT BEARING
Frequency
60 Hz
Insulation Class
B
Material
Aluminum
Max Ambient
40°C
Number of Poles
4
Overload Protection
Thermostat
Phase
1
Rated Current
0.8
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
1550
Shaft Diameter
0.275"
Speed
1550
Starting Method
Watt
34
Description
ELCO – Refrigeration Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Air OVER
Class B Insulation
Sleeve Bearing
Shaft with 4 End-StudsϽ-23″ Leads with Ring Terminals
One Foot, Front Shroud, 3 Tapped Rear Holes
34 Watt
120V
1800RPM
