Dodge

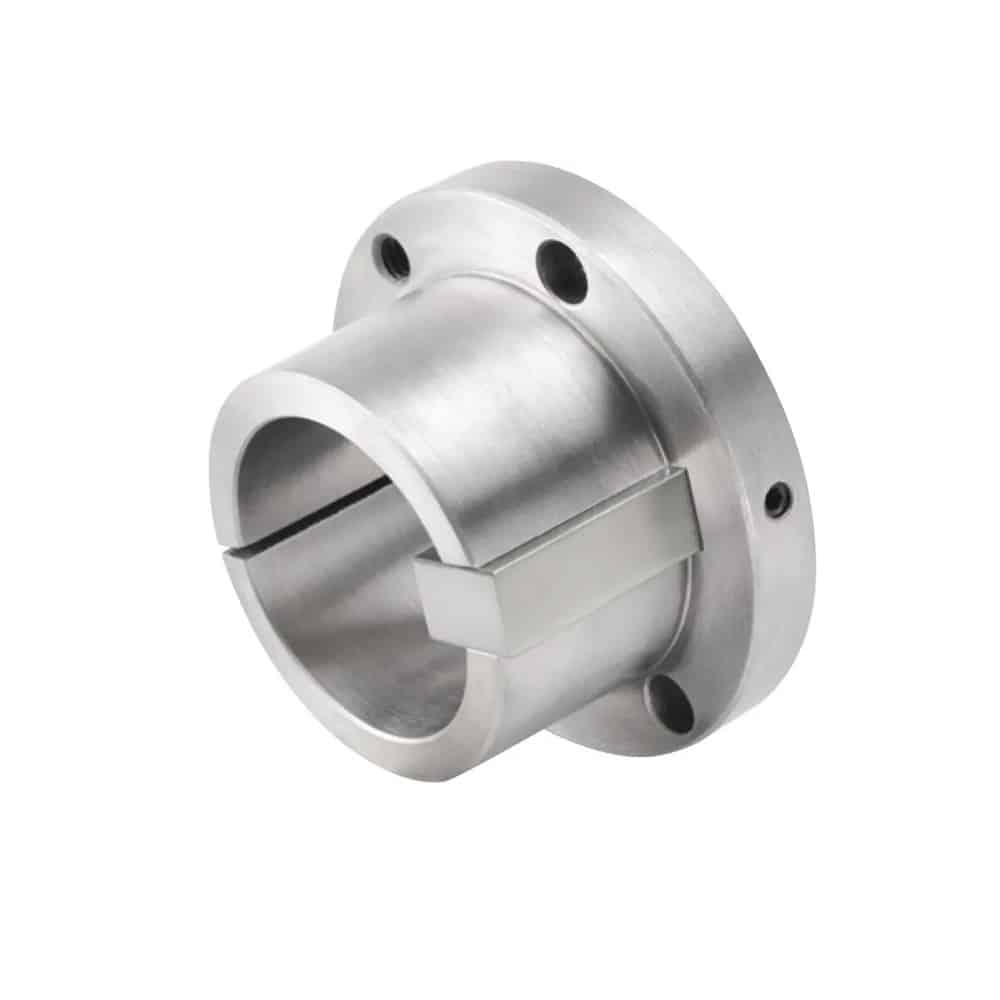

B X 1-3/8″ Split Taper Bushing
Mfr # 471600 | Wright’s # DDG 471600
$44.00
Product Information
Brand
Dodge
Mfr #
471600
Wright's #
DDG 471600
Country of Origin
CHN
Specifications
Bolt Circle Diameter
3.125"
Bore Diameter
1.375"
Bushing Size
B
Bushing Type
Split Taper
Outside Diameter
3.688"
Description
Split taper bushing is keyed to both shaft and hub. External key provides positive drive with no torque on the cap screws. Double split barrel improves true concentricity – grips the shaft with positive clamp fit. Manufactured precisely to industry standards. Taper is 3/4″ per foot on diameter. Split taper bushing is the preferred bushing style in the HVAC industry.
