Dodge

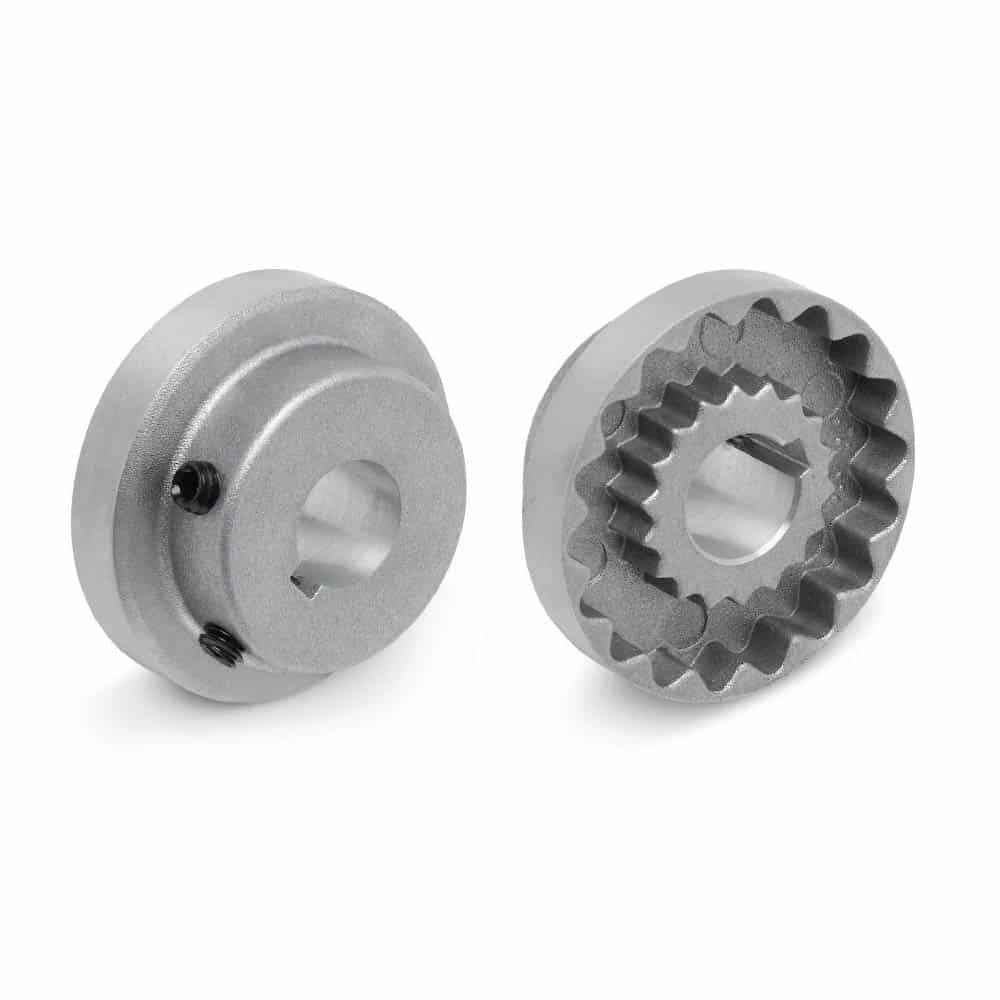

4J X 7/8″ Coupling Flange
Mfr # 022711 | Wright’s # DDG 022711
4J D-Flex Coupling Flange, 7/8″ Bore
$22.62
Product Information
Brand
Dodge
Mfr #
022711
Wright's #
DDG 022711
Country of Origin
USA
Specifications
Bore Diameter
0.875"
Coupling Component
Flange
Coupling Style
Sleeve
Coupling Size
4
Flange Style
Type J
Material
Zinc Die-Cast
Outside Diameter
2.46"
Description
D-Flex couplings employ a molded, non-lubricated elastomeric flexing sleeve loaded in shear. The flexible sleeve shall be of EPDM, Neoprene, or Hytrel. D-Flex couplings utilizing EPDM and Neoprene elements are static conductive.
