Century

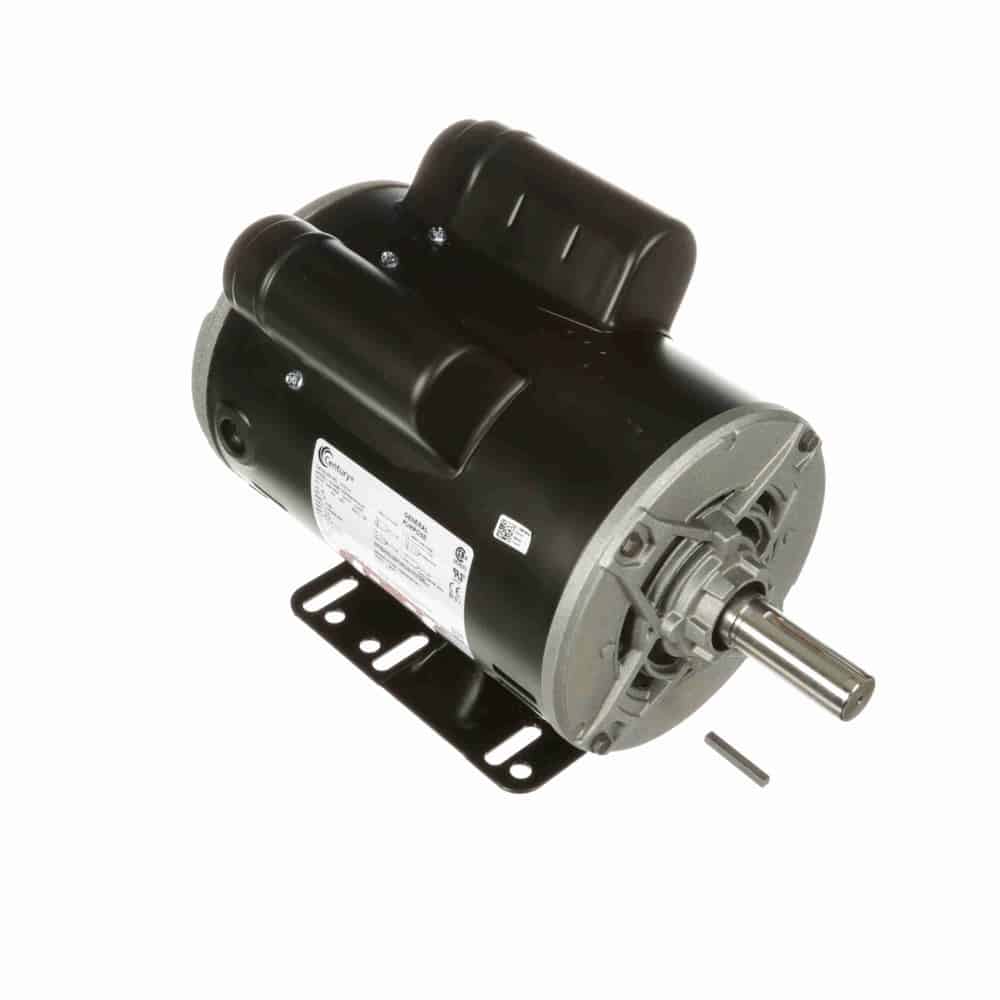

1.5HP 1PH 145T 4P ODP 1800 115/208-230V
Mfr # V101V1 | Wright’s # CEN V101V1
1.5HP 1-Phase General Purpose Motor, 1 Phase, 145T Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/208-230V, ODP Enclosure
$738.69
Product Information
Brand
Century
Mfr #
V101V1
Wright's #
CEN V101V1
Country of Origin
MEX
Specifications
C Dim
13.36"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
ODP
Full Load Efficiency
81.5
Frame
145T
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
13.0/7.0-6.5
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.2
Shaft Diameter
0.875"
Speed
1800
Starting Method
