Century
1/3HP PSC 48Y TE 1075 115V 5uF-inc
Mfr # UH1036 | Wright’s # CEN UH1036

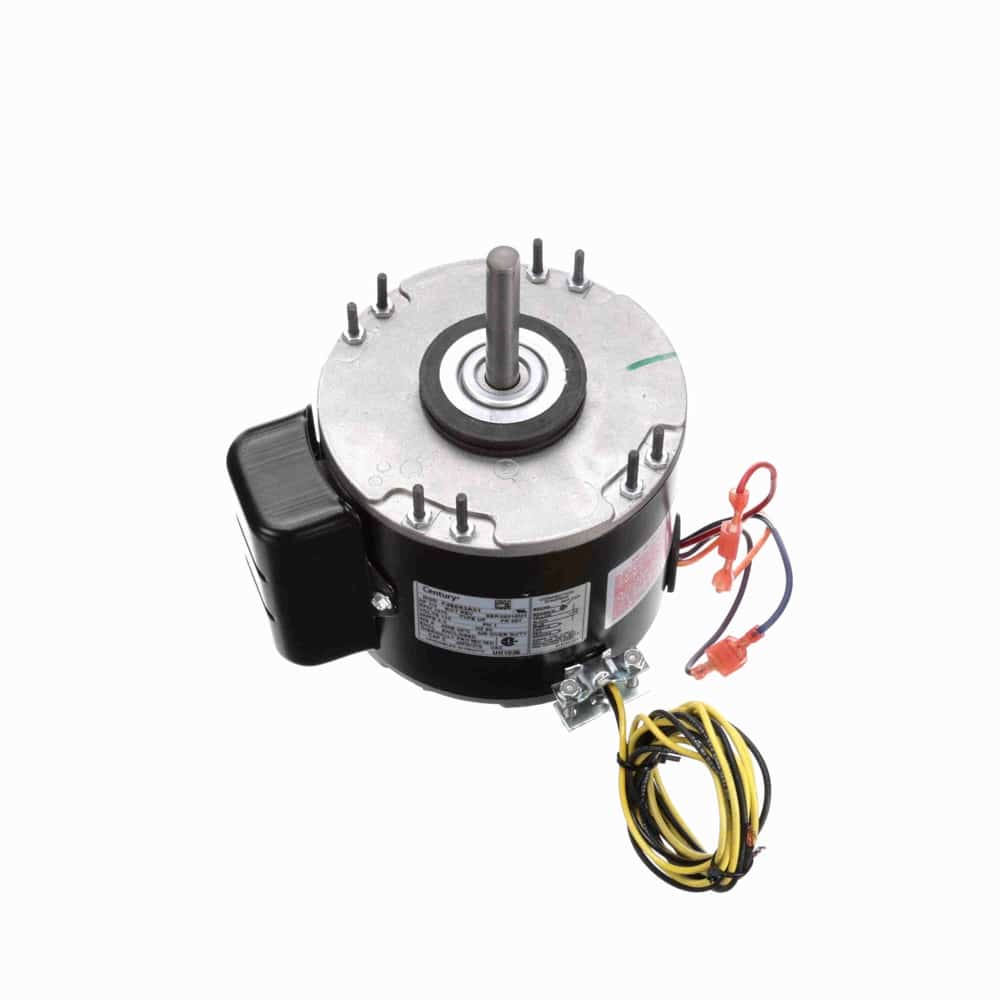

1/3HP Unit Heater Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
$267.91
Product Information
Brand
Century
Mfr #
UH1036
Wright's #
CEN UH1036
Country of Origin
MEX
Specifications
C Dim
8.1"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
A
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
5.3
Rated Voltage
115
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Unit Heater Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class A Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatТ” Leads
Extended Studs Shaft End, Resilient Rings, Resilient Base
1/3HP Unit Heater Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
