Century

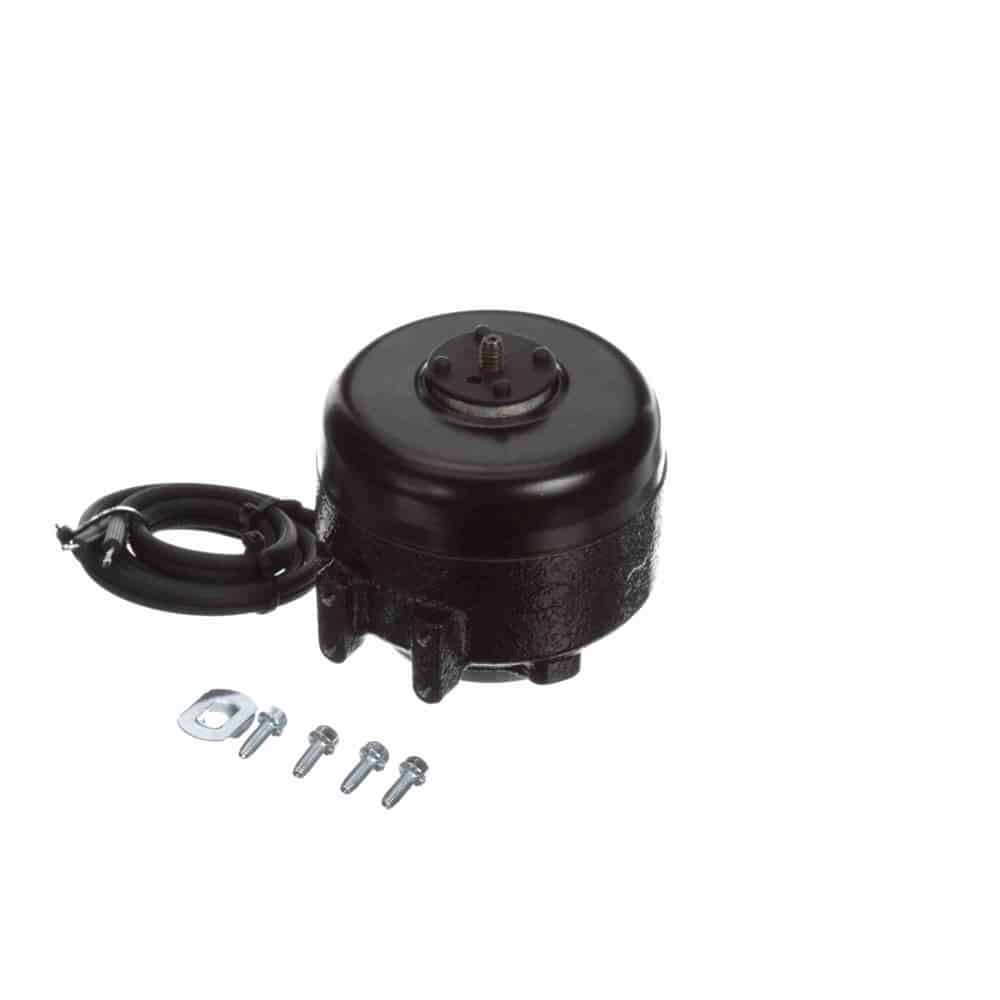

6W ShP 1550 CCWLE 115V 0.36A CI
Mfr # UB06CCL2F | Wright’s # CEN UB06CCL2F
HP 6W Unit Bearing Motor, 1 Phase, UNIT BEARING Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
UB06CCL2F
Wright's #
CEN UB06CCL2F
Specifications
Electrical Type
Shaded Pole
Enclosure
TEAO
Frame
UNIT BEARING
Frequency
60/50 Hz
Insulation Class
B
Material
Cast Iron
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Impedance
Phase
1
Rated Current
0.36
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.25"
Speed
1550
Starting Method
Watt
6
Description
Refrigeration Motor
Unit Bearing
Shaded Pole
Impedance Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Bearing – Unit
1/4 x 20 Threaded ShaftϾ.5″ Leads
2 Mounting Feet, 3 Rear Mounting Holes
HP 6W Unit Bearing Motor, 1 Phase, UNIT BEARING Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, TEAO Enclosure
