Century

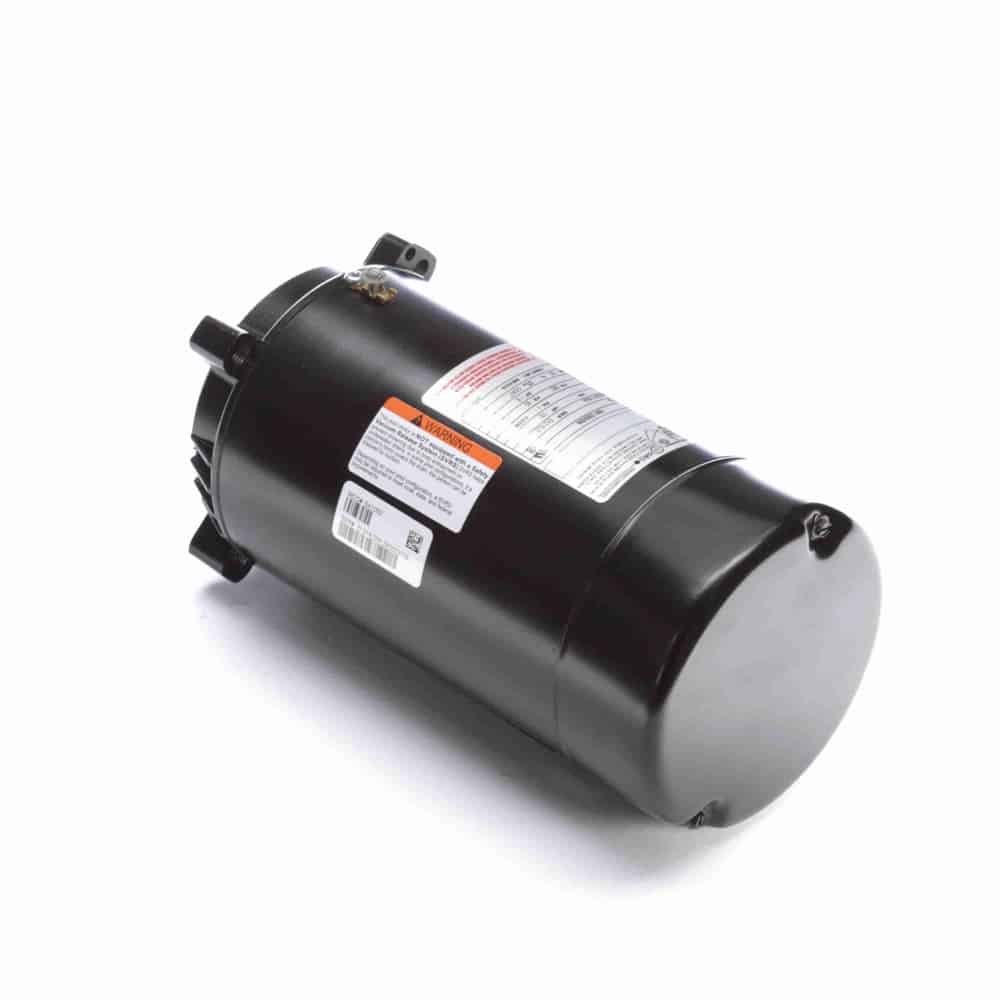

1/2HP 1PH 56C 2P ODP 3450 115/230V AOL UL1081
Mfr # SK1052 | Wright’s # CEN SK1052
1/2HP Pool & Spa Pump Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Cap Start Motor, 115/230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
SK1052
Wright's #
CEN SK1052
Country of Origin
MEX
Specifications
C Dim
13.06"
Electrical Type
Cap Start Motor
Enclosure
ODP
Frame
56C
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
5.3/10.6
Rated Voltage
115/230
Rotation
Counterclockwise Pump End
RPM
3450
Service Factor
1.6
Shaft Diameter
0.625"
Speed
3450
Description
Sealed Ball Bearings
Capacitor Start
Sealed Switch Design
50°C Ambient
303 Stainless Shaft
UL 1081 Design
304 Bearing Shaft End
Keyed Shaft
1/2HP Pool & Spa Pump Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Cap Start Motor, 115/230V, ODP Enclosure
