Century
1/3HP 1PH 56Z ODP 2spd 1725 2W-VT 115V BM
Mfr # SGF2034V3 | Wright’s # CEN SGF2034V3

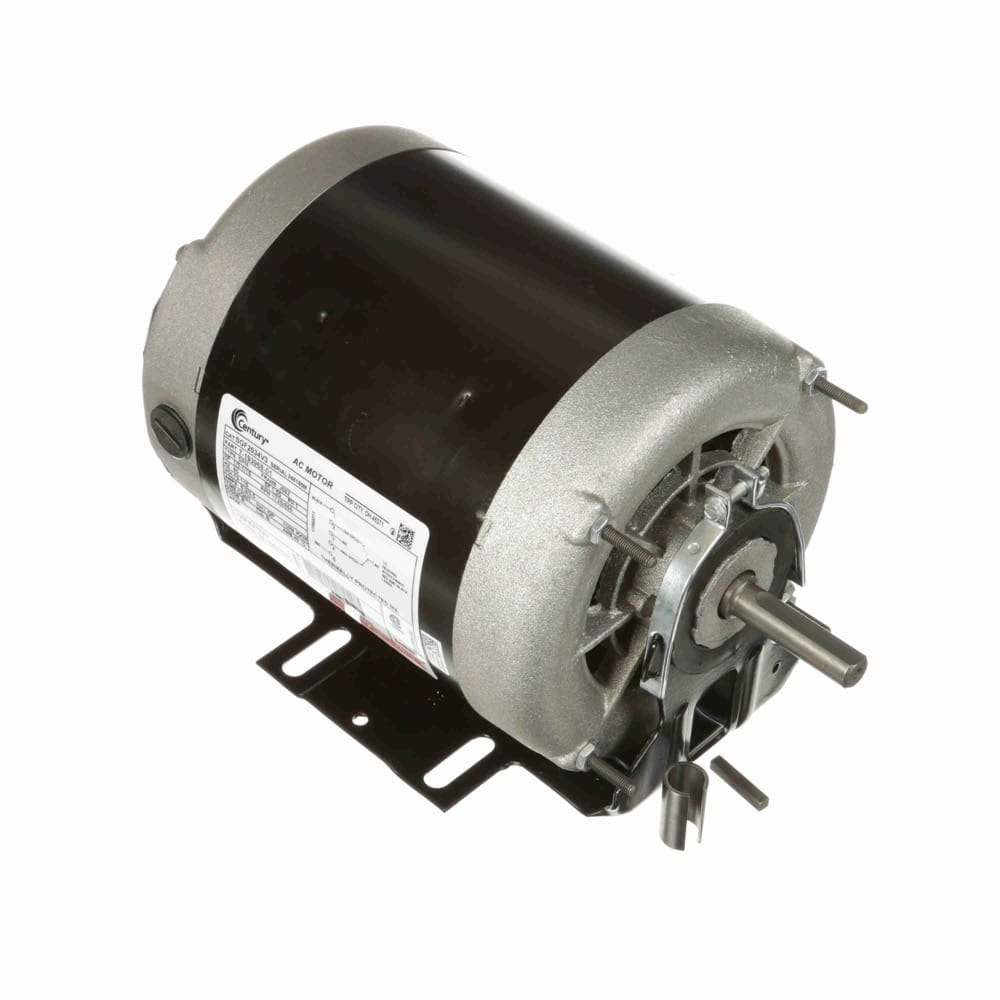

1/3-1/15HP Fan & Blower Motor, 1 Phase, 56Z Frame, 1725 RPM, 2-2-VT Speed, Split Phase, Induction Run, Multi-Speed, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
SGF2034V3
Wright's #
CEN SGF2034V3
Country of Origin
MEX
Specifications
C Dim
11.07"
Electrical Type
Split Phase, Induction Run, Multi-Speed
Enclosure
ODP
Frame
56Z
Frequency
60 Hz
HP
0.33 HP
HP2
1/3-1/15 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4/8
Number of Speeds
2-2-VT
Overload Protection
Thermally Protected
Phase
1
Rated Current
5.2/3.0
Rated Voltage
115
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.5"
Speed
1725/850
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.
1/3-1/15HP Fan & Blower Motor, 1 Phase, 56Z Frame, 1725 RPM, 2-2-VT Speed, Split Phase, Induction Run, Multi-Speed, 115V, ODP Enclosure
