Century

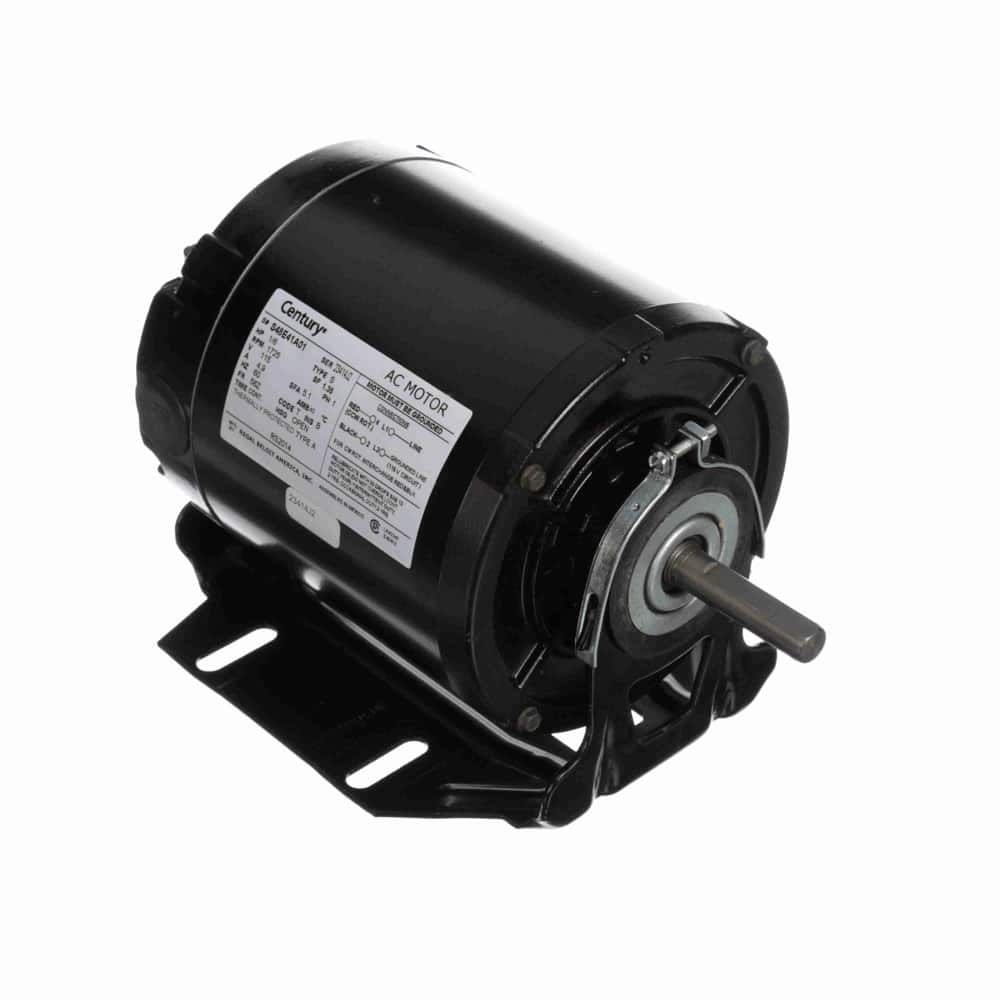

1/6HP 1PH 56Z ODP 1725 115V BM
Mfr # RS2014 | Wright’s # CEN RS2014
1/6HP Fan & Blower Motor, 1 Phase, 56Z Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
RS2014
Wright's #
CEN RS2014
Country of Origin
MEX
Specifications
C Dim
9.61"
Electrical Type
Split Phase
Enclosure
ODP
Frame
56Z
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
B
kW
0.13kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4.9
Rated Voltage
115
Rotation
Reversible
RPM
1725
Service Factor
1.35
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Resilient Base
Continuous duty
Single and two speed
1/6HP Fan & Blower Motor, 1 Phase, 56Z Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure
