Century
1/10HP ShP 42Y ODP 1050 CWSE 115/208-230V RF
Mfr # RF6403 | Wright’s # CEN RF6403

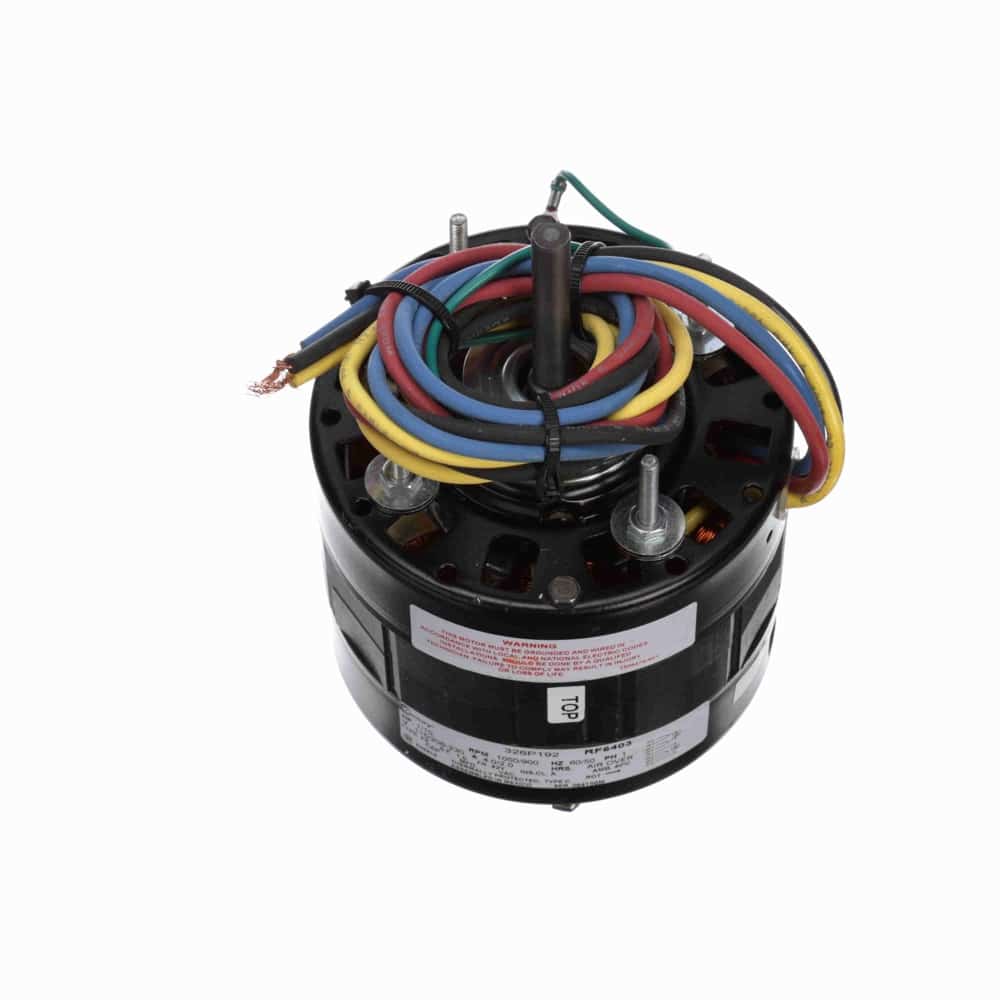

1/10HP Refrigeration Motor, 1 Phase, 42Y Frame, 1050 RPM, 1 Speed, Shaded Pole, 115/208-230V, ODP Enclosure
$190.77
Product Information
Brand
Century
Mfr #
RF6403
Wright's #
CEN RF6403
Country of Origin
MEX
Specifications
C Dim
7.17"
Electrical Type
Shaded Pole
Enclosure
ODP
Frame
42Y
Frequency
60 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
A
kW
0.07kW
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4.0/2.0
Rated Voltage
115/208-230
Rotation
Counterclockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.375"
Speed
1050/900
Starting Method
Description
Refrigeration – Unit Heater – Space Heater Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Lead End and Opposite Lead End End-Frame, Enclosed Shell, Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with Flat, 1/2″ Shaft Adaptor IncludedЅ” Leads
Extended Studs Shaft End, Resilient Mounting Rings Shaft End and Opposite Shaft End, Resilient Base Mounting Clamps, Mounting Ring Adaptors, and Hex Nuts Included
1/10HP Refrigeration Motor, 1 Phase, 42Y Frame, 1050 RPM, 1 Speed, Shaded Pole, 115/208-230V, ODP Enclosure
