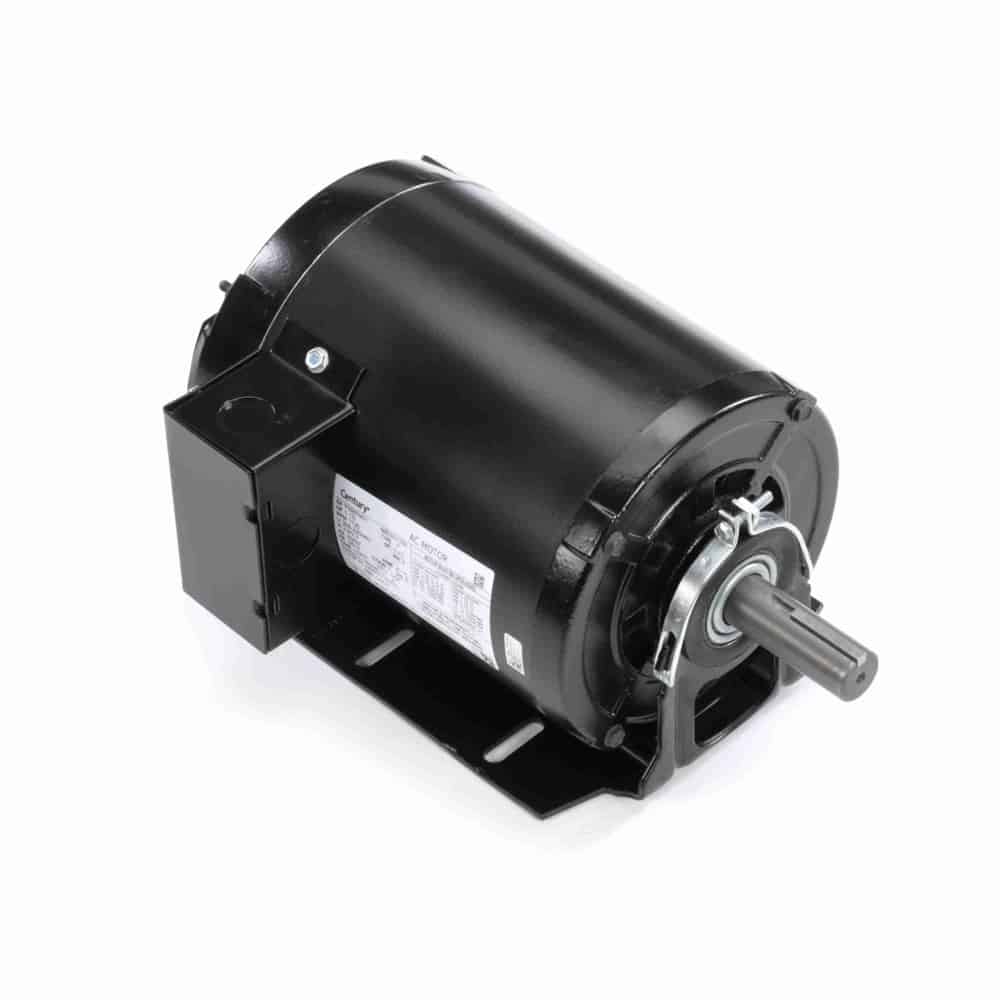

Century
1.5HP 3PH 56HZ ODP 1725 208-230/460V BM
Mfr # RB3154AV1 | Wright’s # CEN RB3154AV1
1.5HP Fan & Blower Motor, 3 Phase, 56HZ Frame, 1725 RPM, 1 Speed, Polyphase, 208-230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
RB3154AV1
Wright's #
CEN RB3154AV1
Country of Origin
MEX
Specifications
C Dim
12.27"
Electrical Type
Polyphase
Enclosure
ODP
Frame
56HZ
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
3
Rated Current
4.6/2.3
Rated Voltage
208-230/460
Rotation
Reversible
RPM
1725
Service Factor
1.15
Shaft Diameter
0.875"
Speed
1725
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
1.5HP Fan & Blower Motor, 3 Phase, 56HZ Frame, 1725 RPM, 1 Speed, Polyphase, 208-230/460V, ODP Enclosure
