1/2HP 1PH 56Z ODP 1725 115/230V BM
Century

1/2HP 1PH 56Z ODP 1725 115/230V BM

Mfr # RB2054DV3 | Wright’s # CEN RB2054DV3

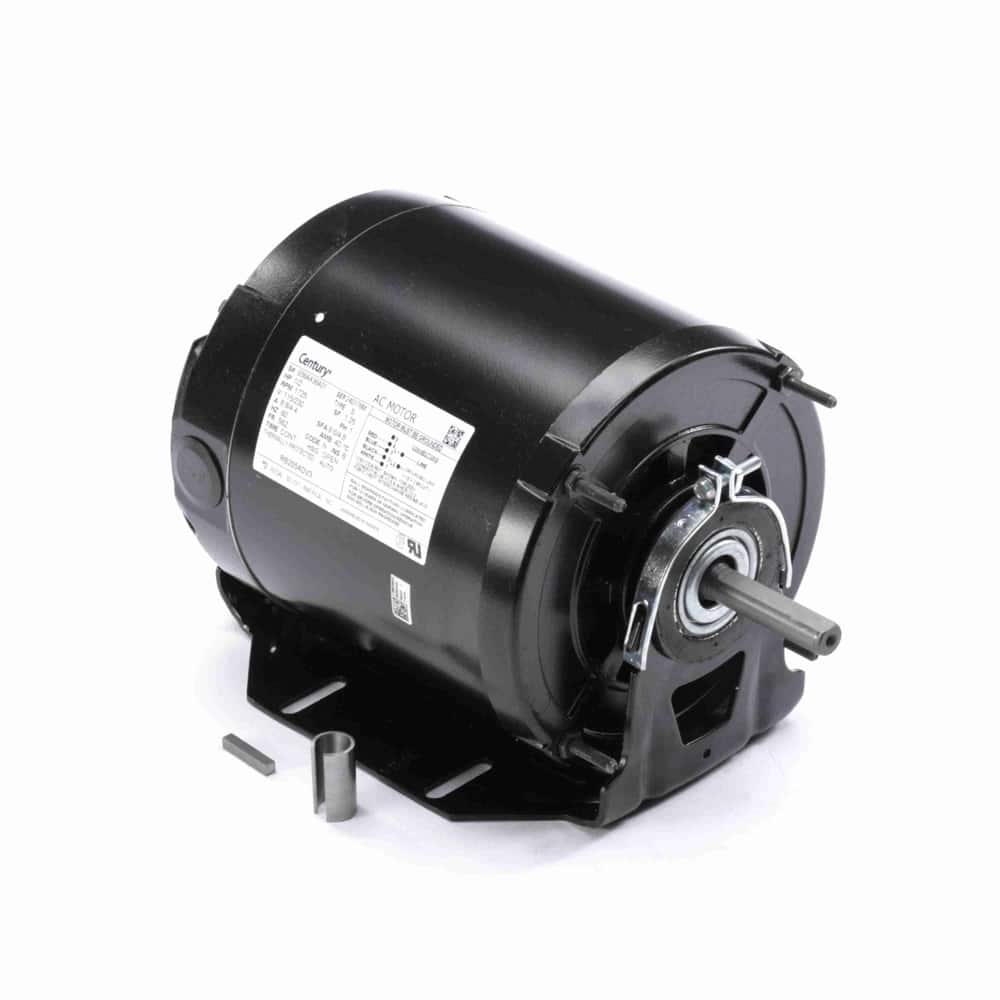

1/2HP Fan & Blower Motor, 1 Phase, 56Z Frame, 1725 RPM, 1 Speed, Split Phase, 115/230V, ODP Enclosure

$374.46

Product Information

Brand Century
Mfr # RB2054DV3
Wright's # CEN RB2054DV3
Country of Origin MEX

Specifications

C Dim 10.34"
Electrical Type Split Phase
Enclosure ODP
Frame 56Z
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 8.8/4.4
Rated Voltage 115/230
Rotation Reversible
RPM 1725
Service Factor 1.25
Shaft Diameter 0.5"
Speed 1725
Starting Method

Description

UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.

1/2HP Fan & Blower Motor, 1 Phase, 56Z Frame, 1725 RPM, 1 Speed, Split Phase, 115/230V, ODP Enclosure

Documents

Data Sheet
