Century

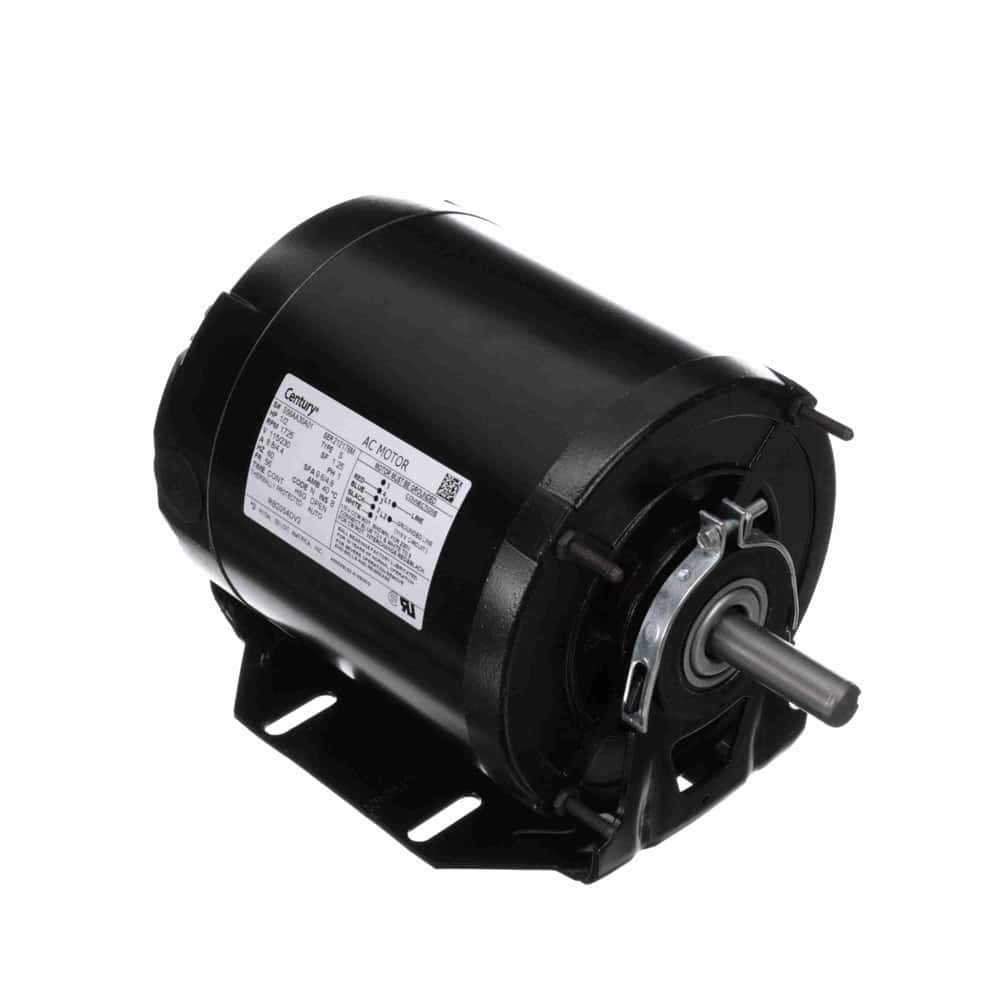

1/2HP 1PH 56 ODP 1725 115/230V BM
Mfr # RB2054DV2 | Wright’s # CEN RB2054DV2
1/2HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Split Phase, 115/230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
RB2054DV2
Wright's #
CEN RB2054DV2
Country of Origin
MEX
Specifications
C Dim
10.34"
Electrical Type
Split Phase
Enclosure
ODP
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
8.8/4.4
Rated Voltage
115/230
Rotation
Reversible
RPM
1725
Service Factor
1.25
Shaft Diameter
0.624"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.
1/2HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Split Phase, 115/230V, ODP Enclosure
