Century

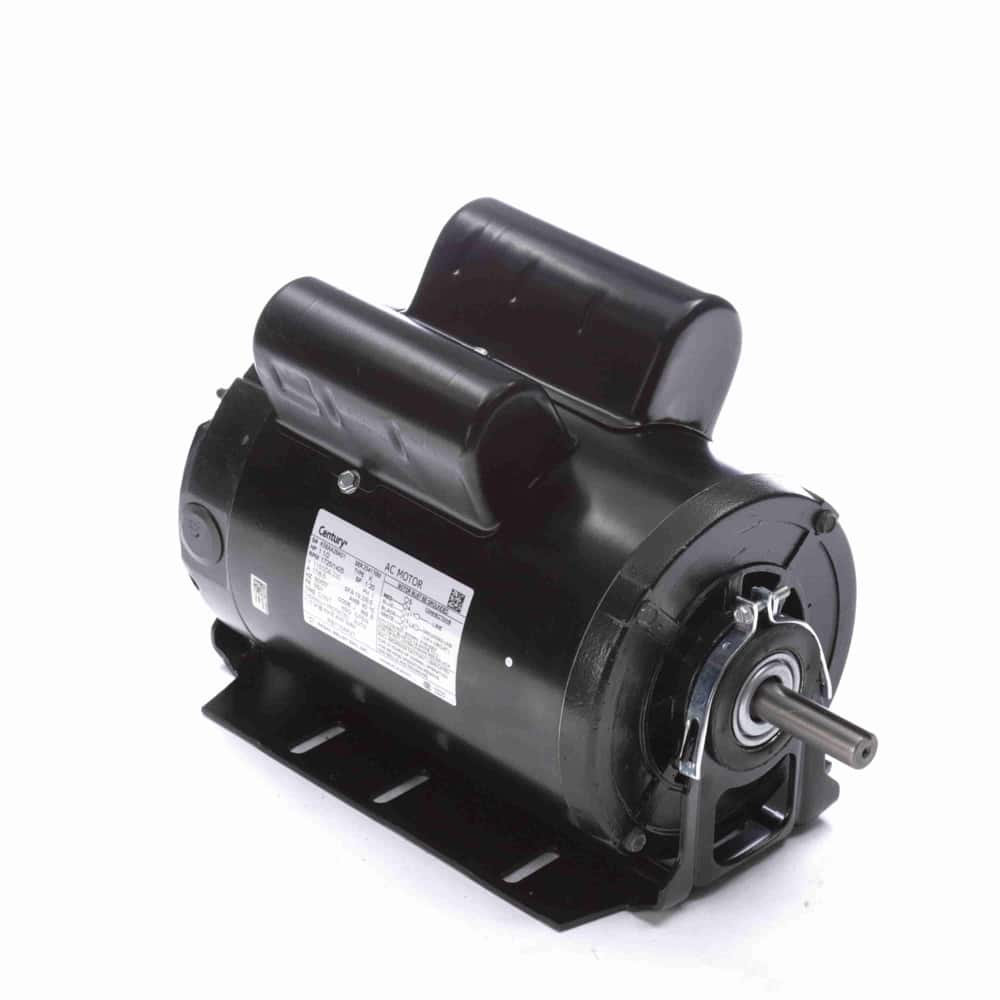

11/2HP 1PH 56H ODP 1725 115/208-230V BM
Mfr # RB1154AV1 | Wright’s # CEN RB1154AV1
11/2HP Fan & Blower Motor, 1 Phase, 56H Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
RB1154AV1
Wright's #
CEN RB1154AV1
Country of Origin
MEX
Specifications
C Dim
12.84"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
ODP
Frame
56H
Frequency
60/50 Hz
HP
1.5 HP
HP2
11/2 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
17/8.5
Rated Voltage
115/208-230
Rotation
Reversible
RPM
1725
Service Factor
1.2
Shaft Diameter
0.625"
Speed
1725/1425
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
11/2HP Fan & Blower Motor, 1 Phase, 56H Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/208-230V, ODP Enclosure
