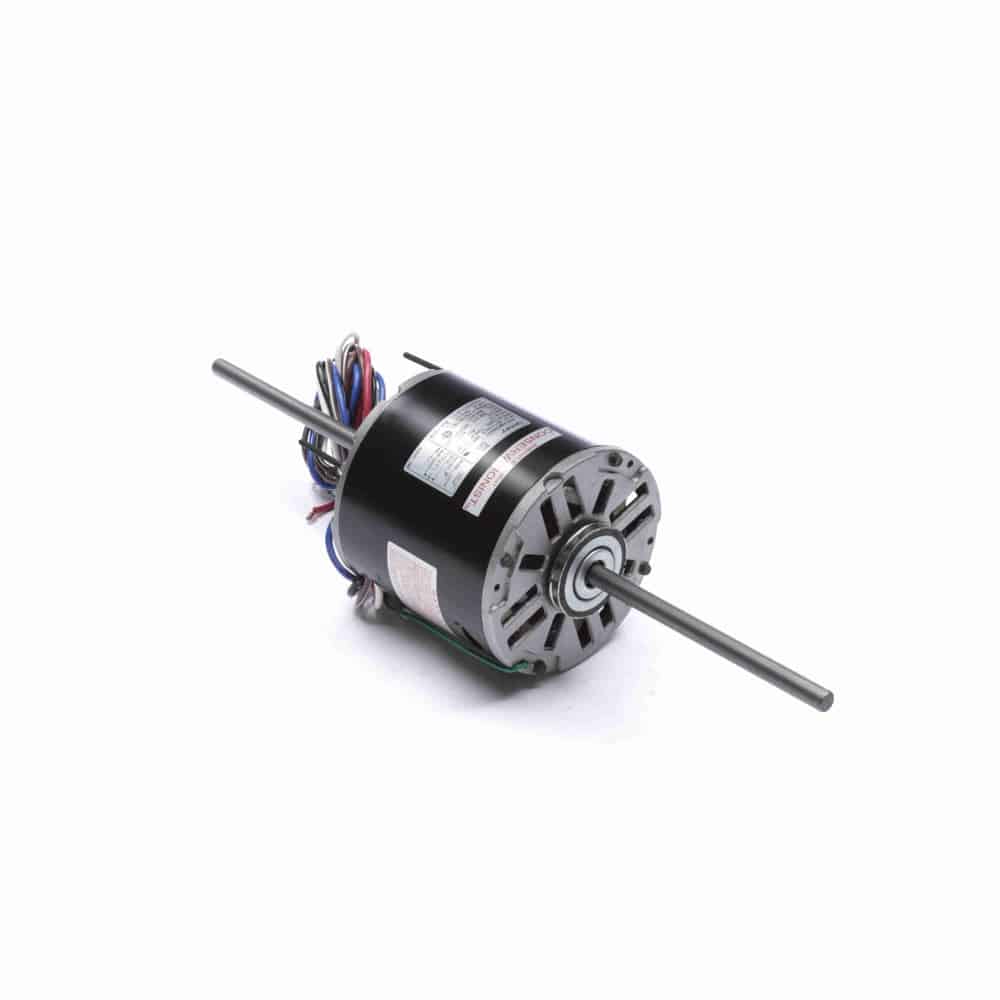

3/4HP PSC 48Y TE 3spd 1075 CCWSE 115V 15uF
Century

3/4HP PSC 48Y TE 3spd 1075 CCWSE 115V 15uF

Mfr # RAL1076 | Wright’s # CEN RAL1076

3/4HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure

1 in stock

Sign in to access special pricing and availability.
x

$416.71

Product Information

Brand Century
Mfr # RAL1076
Wright's # CEN RAL1076
Country of Origin IND

Specifications

C Dim 20"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Full Load Efficiency 67
Frame 48Y
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class A
kW 0.56kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 8.2
Rated Voltage 115
Rotation Counterclockwise Lead End
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method

Description

Fan Coil – Room Air Conditioner – Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class A Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Double Shaft with FlatЋ” Leads
Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor

3/4HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
