Century

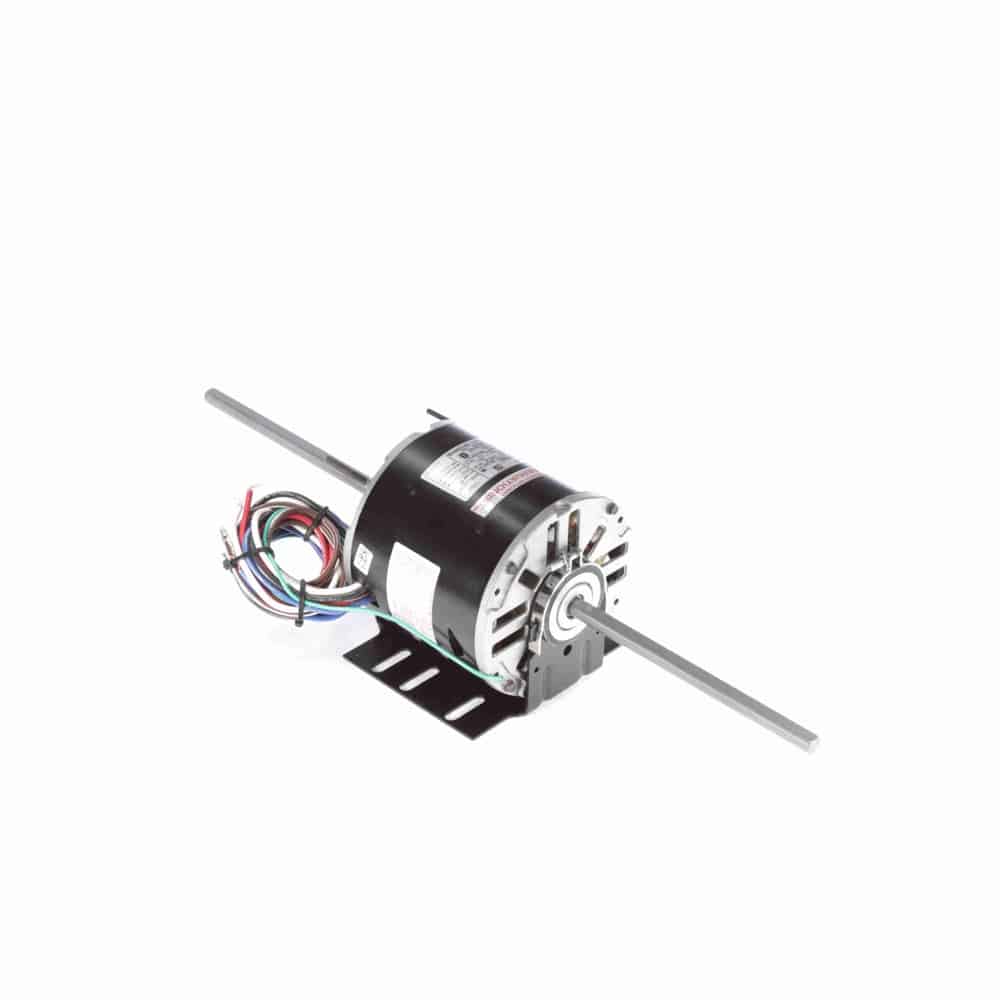

1/2HP PSC 48Y TE 3spd 1075 CCWSE 208-230V 5uF
Mfr # RA1056WB | Wright’s # CEN RA1056WB
1/2HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
RA1056WB
Wright's #
CEN RA1056WB
Specifications
C Dim
21.74"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
2.7
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Fan Coil – Room Air Conditioner – Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed, Air Over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatЋ” Leads
Resilient Base, Extended Studs Lead End
1/2HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
