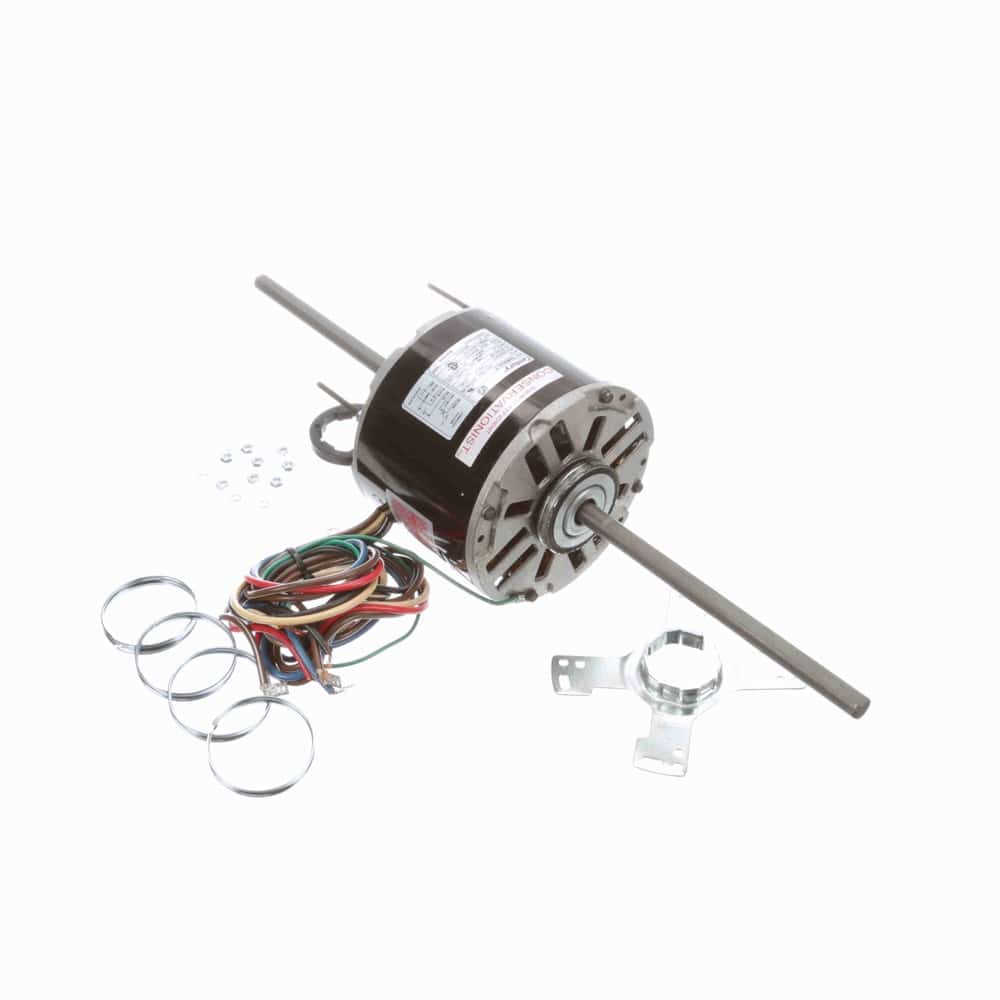

1/4HP PSC 48Y TE 3spd 1625 CCWSE 208-230V 5uF
Century

1/4HP PSC 48Y TE 3spd 1625 CCWSE 208-230V 5uF

Mfr # RA1024 | Wright’s # CEN RA1024

1/4HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1625 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure

Contact Us For Pricing

Product Information

Brand Century
Mfr # RA1024
Wright's # CEN RA1024
Country of Origin MEX

Specifications

C Dim 20"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class A
kW 0.19kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 1.9
Rated Voltage 208-230
Rotation Counterclockwise Lead End
RPM 1625
Service Factor 1
Shaft Diameter 0.5"
Speed 1625
Starting Method

Description

Fan Coil – Room Air Conditioner – Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed, Air Over
Class A Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Double Shaft with FlatЋ” Leads
Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor

1/4HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1625 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
