Century

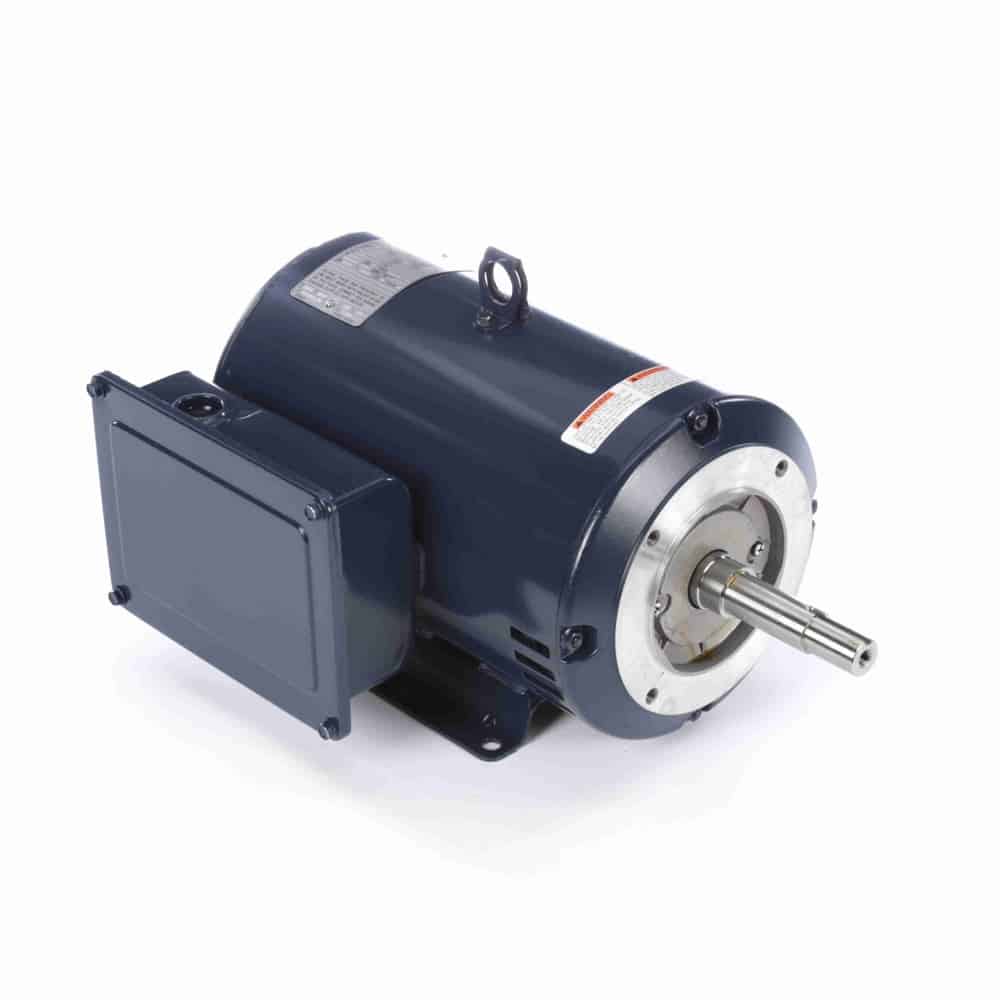

5HP 1PH 184JM 2P ODP 3530 230V
Mfr # P231M2 | Wright’s # CEN P231M2
5HP Close-Coupled Pump Motor, 1 Phase, 184JM Frame, 3530 RPM, 1 Speed, Capacitor Start, 230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
P231M2
Wright's #
CEN P231M2
Country of Origin
MEX
Specifications
C Dim
17.95"
Electrical Type
Capacitor Start
Enclosure
ODP
Frame
184JM
Frequency
60 Hz
HP
5 HP
HP2
5 HP
Insulation Class
F
kW
3.7kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
22.7
Rated Voltage
230
Rotation
Counterclockwise
RPM
3530
Service Factor
1.15
Shaft Diameter
1.25"
Speed
3530
Starting Method
Description
External slinger
Double sealed ball bearings
5HP Close-Coupled Pump Motor, 1 Phase, 184JM Frame, 3530 RPM, 1 Speed, Capacitor Start, 230V, ODP Enclosure
