Century

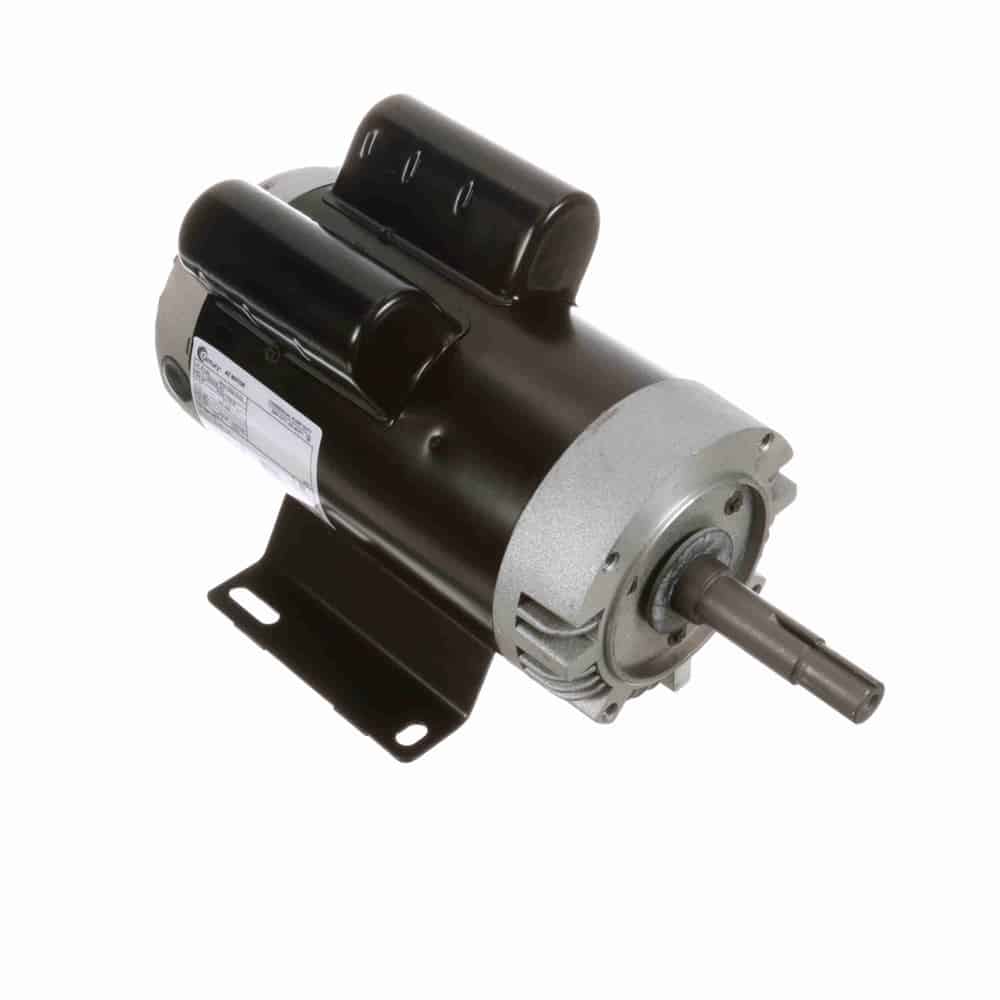

5HP 1PH 184JM 2P ODP 3450 230V
Mfr # P140 | Wright’s # CEN P140
5HP Close-Coupled Pump Motor, 1 Phase, 184JM Frame, 3450 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
P140
Wright's #
CEN P140
Country of Origin
MEX
Specifications
C Dim
17.12"
Electrical Type
Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure
ODP
Frame
184JM
Frequency
60 Hz
HP
5 HP
HP2
5 HP
Insulation Class
B
kW
3.7kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
20
Rated Voltage
230
Rotation
Clockwise
RPM
3450
Service Factor
1.15
Shaft Diameter
1.25"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Suitable for use on a VFD, 10:1 variable torque and 2:1 constant torque.
Class F insulation(as noted) protects motor for a maximum temperature rating.
1.15 service factor on sinewave, 1.0 service factor on IGBT power.
Double sealed ball bearings mechanically locked on shaft end.
5HP Close-Coupled Pump Motor, 1 Phase, 184JM Frame, 3450 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 230V, ODP Enclosure
