Century
1HP 1PH 143JM 4P ODP 1745 115/230V
Mfr # P121 | Wright’s # CEN P121

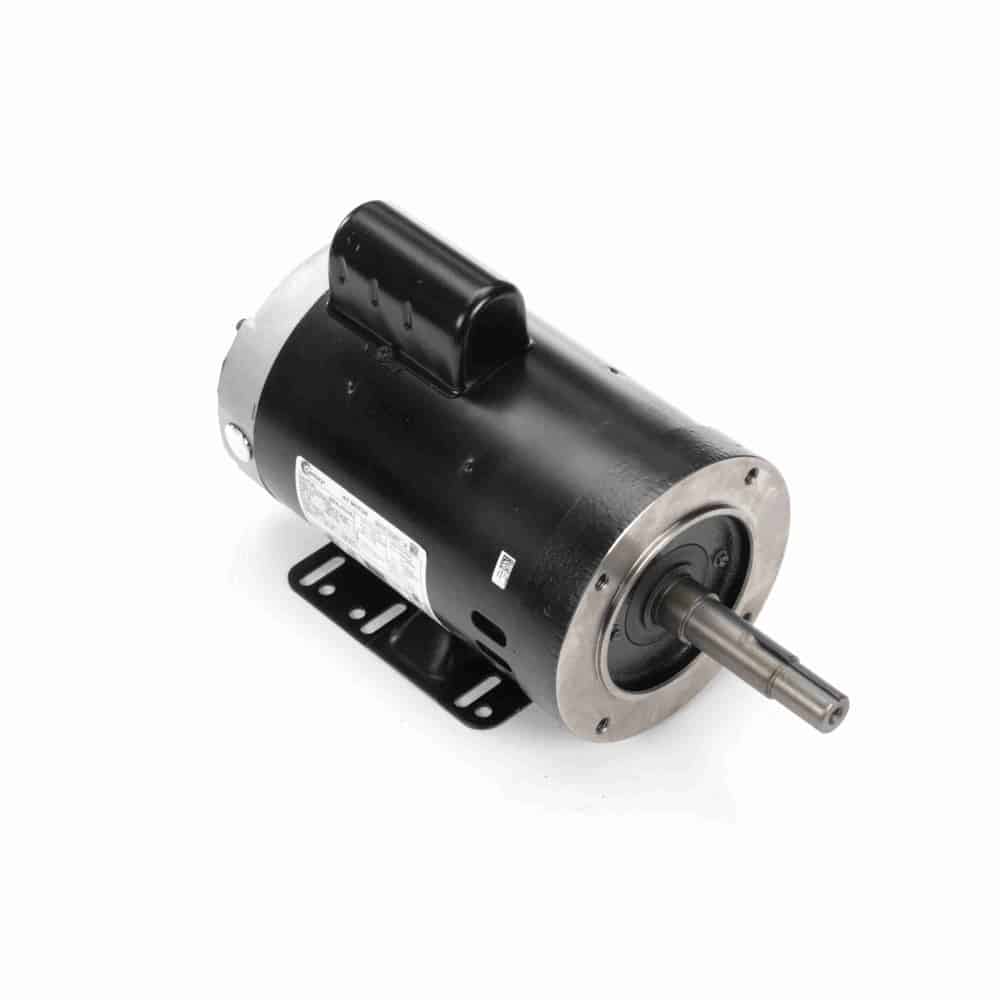

1HP Close-Coupled Pump Motor, 1 Phase, 143JM Frame, 1745 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/230V, ODP Enclosure
$466.09
Product Information
Brand
Century
Mfr #
P121
Wright's #
CEN P121
Country of Origin
MEX
Specifications
C Dim
15.55"
Electrical Type
Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure
ODP
Frame
143JM
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
7.5/15.0
Rated Voltage
115/230
Rotation
Reversible Counterclockwise
RPM
1745
Service Factor
1.15
Shaft Diameter
1.156"
Speed
1745
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Suitable for use on a VFD, 10:1 variable torque and 2:1 constant torque.
Class F insulation(as noted) protects motor for a maximum temperature rating.
1.15 service factor on sinewave, 1.0 service factor on IGBT power.
Double sealed ball bearings mechanically locked on shaft end.
1HP Close-Coupled Pump Motor, 1 Phase, 143JM Frame, 1745 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/230V, ODP Enclosure
