Century

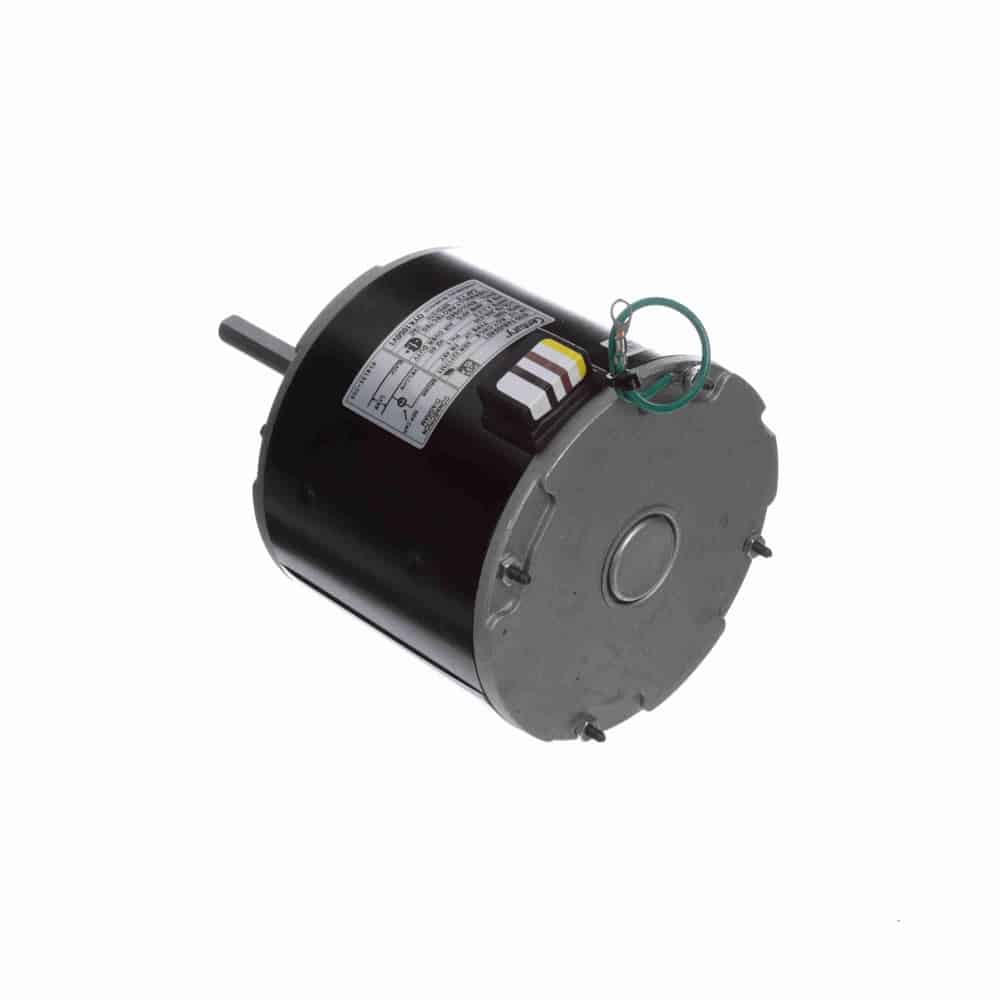

1/2HP PSC 48Y TE 1090 CCWSE 208-230V 5uF OEM
Mfr # OYK1056V1 | Wright’s # CEN OYK1056V1
1/2HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1090 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OYK1056V1
Wright's #
CEN OYK1056V1
Specifications
C Dim
9.12"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.2-2.5
Rated Voltage
208-230
Rotation
Clockwise Lead End
RPM
1090
Service Factor
1
Shaft Diameter
0.5"
Speed
1090
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double Flat
Terminal Block Connection
Extended Studs Opposite Shaft End, Belly Band Mount (Belly Band Not Included)
1/2HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1090 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
