Century

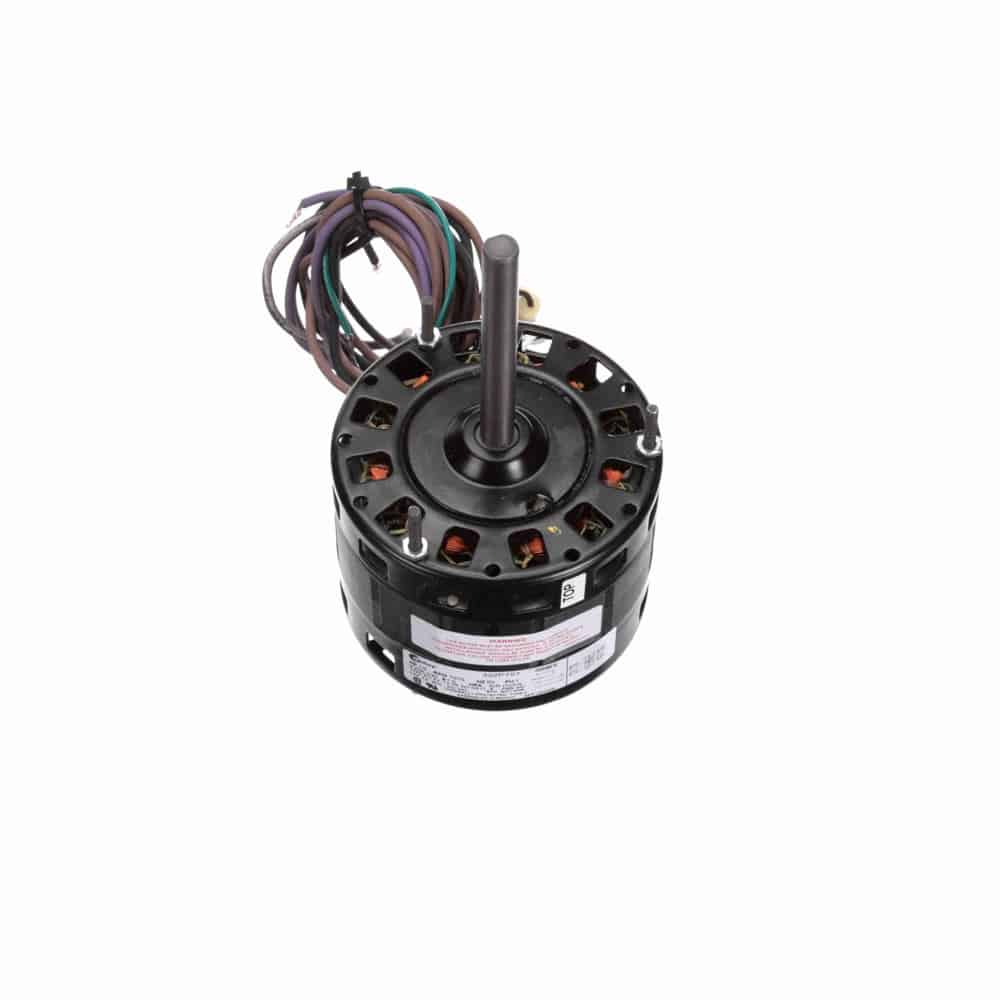

1/5HP PSC 42Y ODP 1075 208-230V 5uF OEM
Mfr # OWW6516 | Wright’s # CEN OWW6516
1/5HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OWW6516
Wright's #
CEN OWW6516
Specifications
C Dim
8.15"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
42Y
Frequency
60 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
B
kW
0.15kW
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.5
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЊ.5″ Leads
Extended Studs Shaft End
1/5HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
