Century
1/3HP PSC 42Y TE 3spd 1450 CCWSE 208-230V 6uF OEM
Mfr # OWW4515 | Wright’s # CEN OWW4515

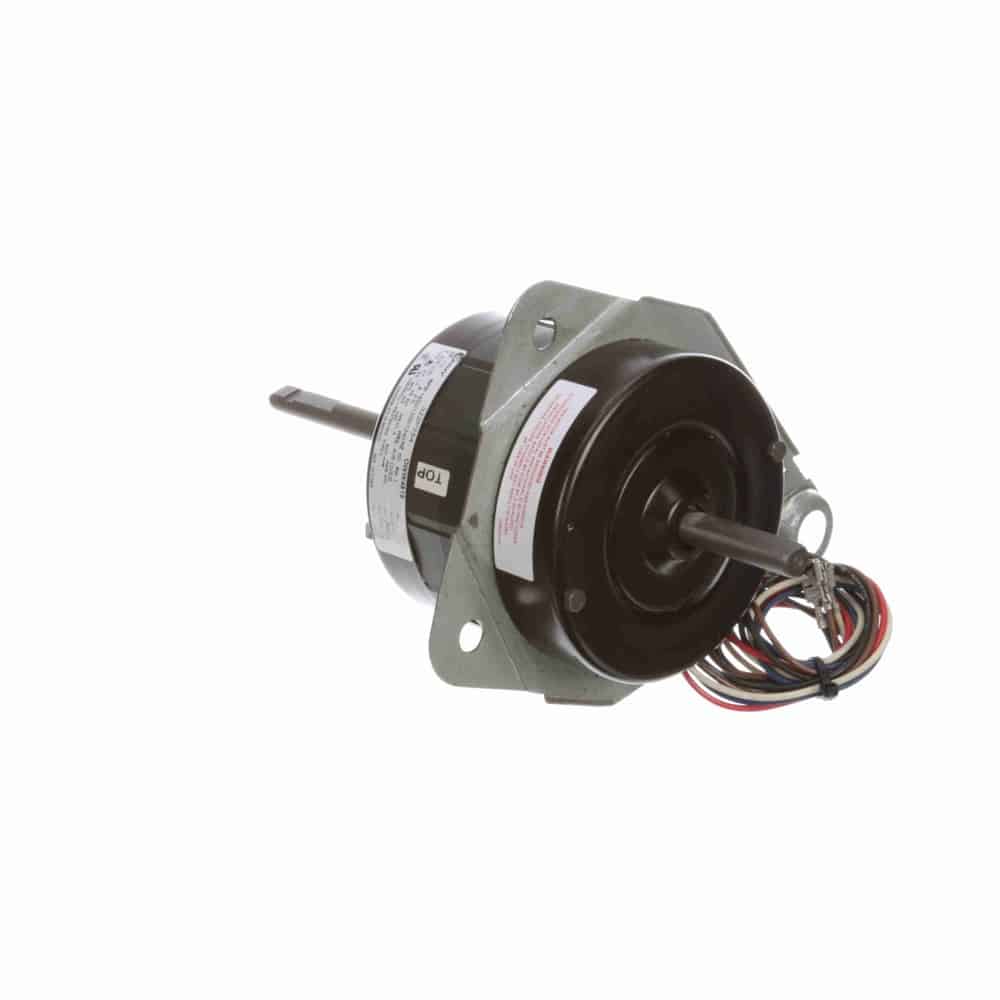

1/3HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1450 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OWW4515
Wright's #
CEN OWW4515
Country of Origin
MEX
Specifications
C Dim
11.47"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
42Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
A
kW
0.25kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
2.5
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
1450
Service Factor
1
Shaft Diameter
0.5"
Speed
1450/1350/1240
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 8-6 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatϾ.5″ Leads with Female Spade Terminals
Mounting Plate for OEM Application
1/3HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1450 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
