Century

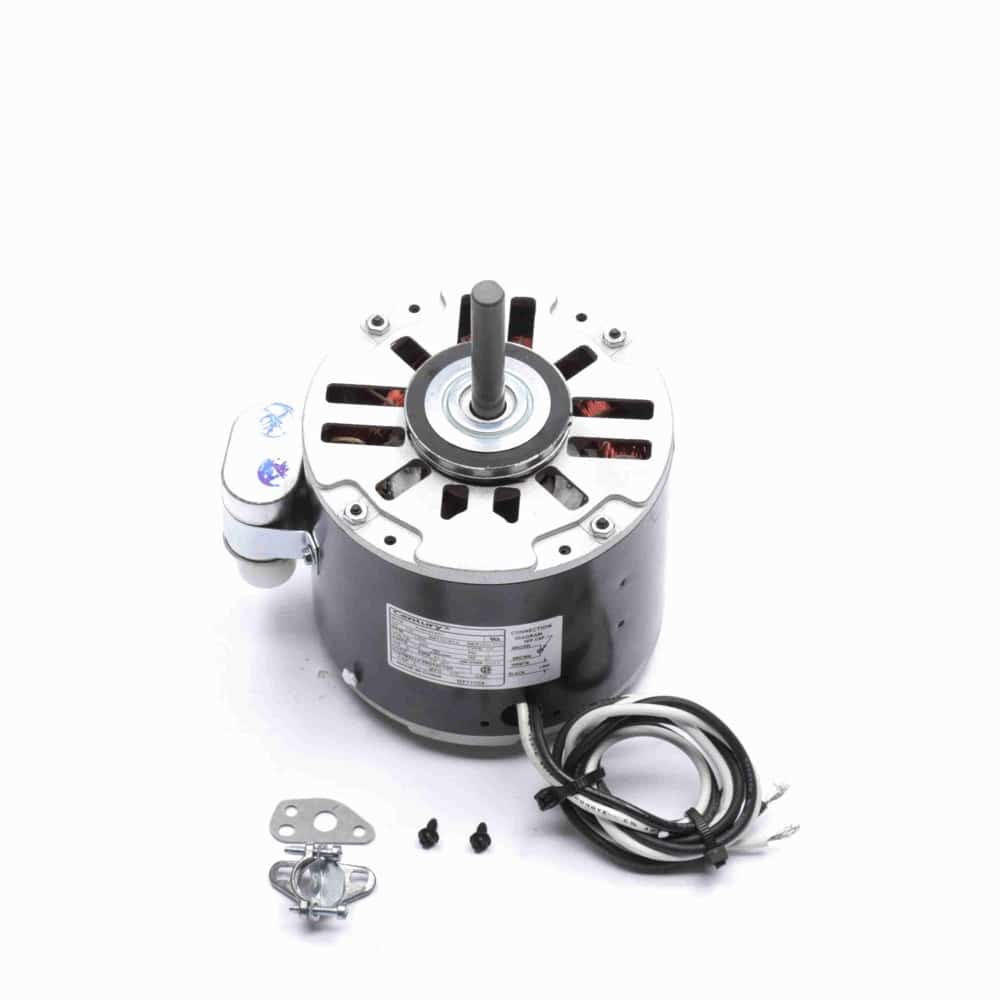

1/4HP PSC 5.6″ TE 1625 CCWSE 230V 5uF-inc OEM
Mfr # OTY1024 | Wright’s # CEN OTY1024
1/4HP OEM Replacement Motor, 1 Phase, 48 Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
$233.28
Product Information
Brand
Century
Mfr #
OTY1024
Wright's #
CEN OTY1024
Country of Origin
MEX
Specifications
C Dim
8.11"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.9
Rated Voltage
230
Rotation
Counterclockwise Lead End
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЏ” Leads
Resilient Ring Mount
1/4HP OEM Replacement Motor, 1 Phase, 48 Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
