Century

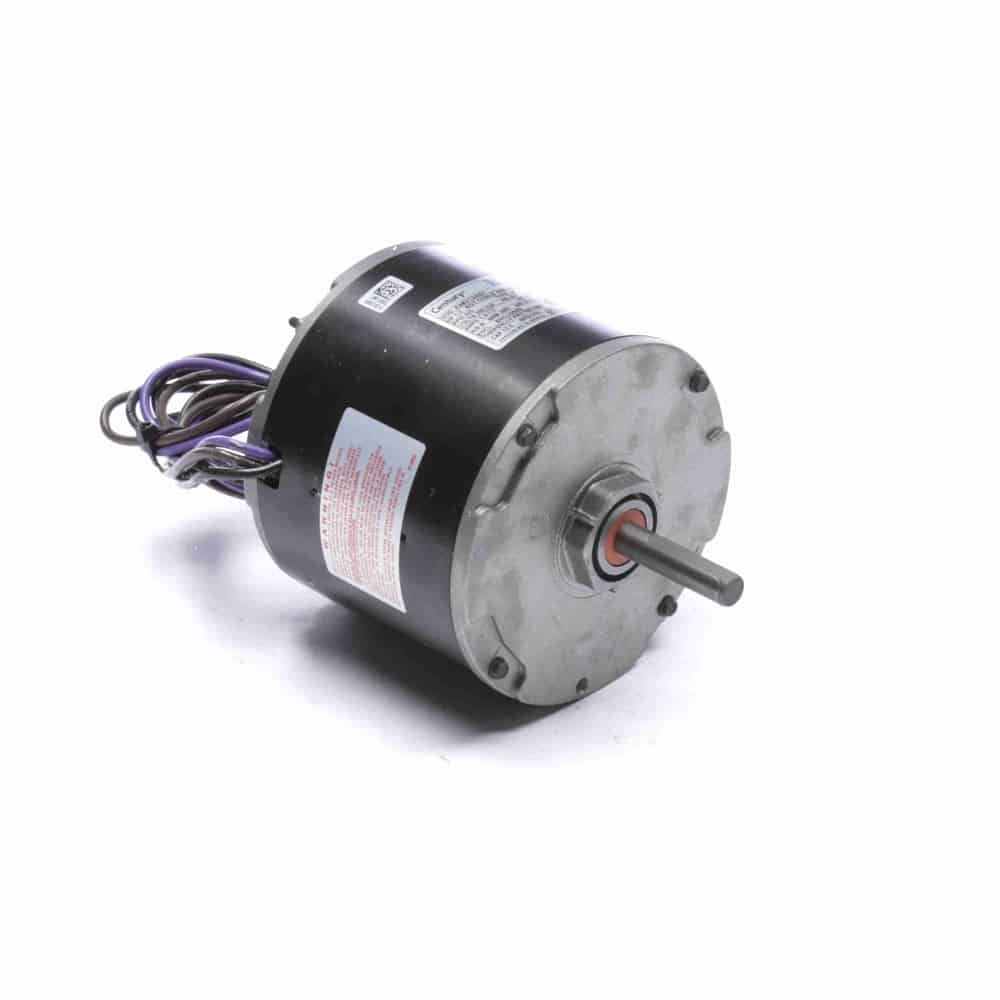

1/4HP PSC 48Y TE 825 CCWSE 200-230V 5uF OEM
Mfr # OTR1028 | Wright’s # CEN OTR1028
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 200-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OTR1028
Wright's #
CEN OTR1028
Specifications
C Dim
7.36"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.4-1.5
Rated Voltage
200-230
Rotation
Counterclockwise Lead End
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 12.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЋ” Leads with Spade Terminals
Extended Studs Lead End, Hex Mounting Hub Shaft End, Belly Band Mount (Belly Band Not Included)
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 200-230V, TEAO Enclosure
