Century

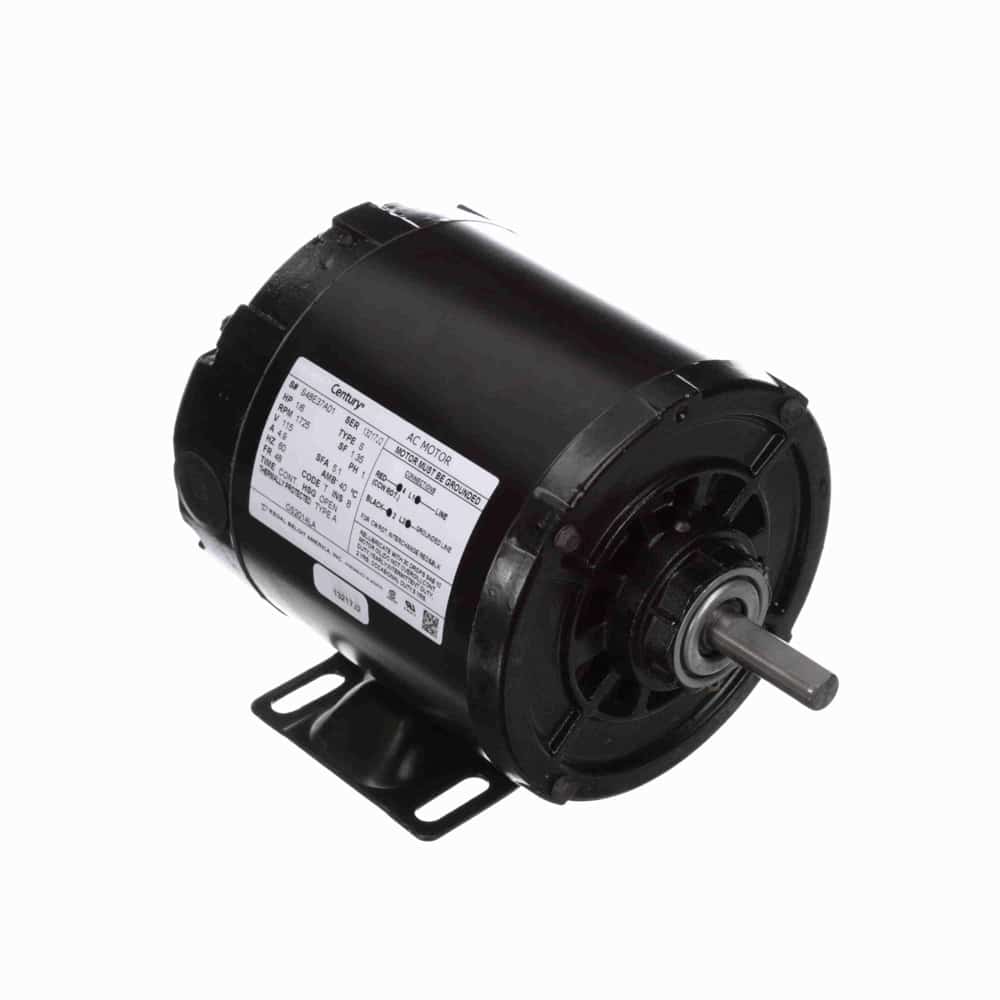

1/4HP 1PH 5.6″ ODP 1725 115V BM
Mfr # OS2024L | Wright’s # CEN OS2024L
1/4HP Fan & Blower Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OS2024L
Wright's #
CEN OS2024L
Country of Origin
MEX
Specifications
C Dim
8.9"
Electrical Type
Split Phase
Enclosure
ODP
Frame
48
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
4.6
Rated Voltage
115
Rotation
Reversible
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
Resilient Base
Continuous duty
Single and two speed
1/4HP Fan & Blower Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure
