Century

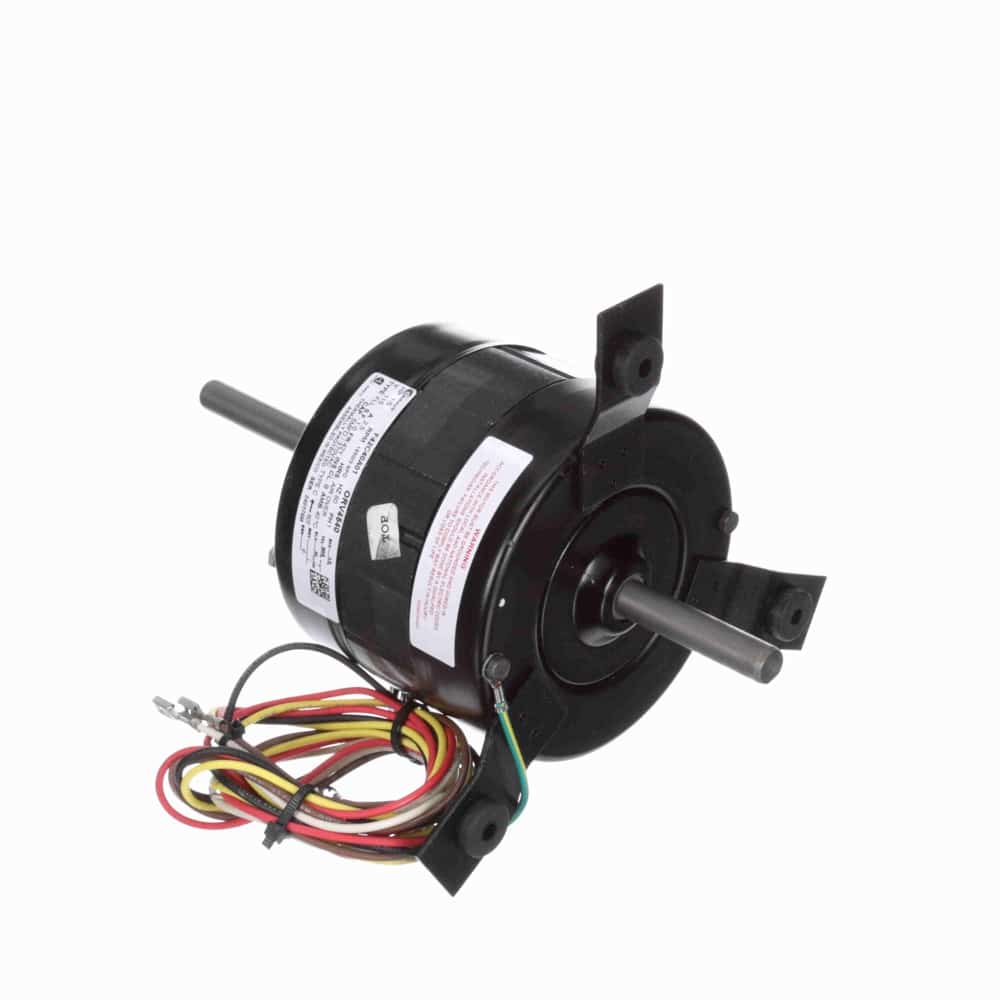

1/5HP PSC 42Y ODP 3spd 1650 CCWSE 115V 5uF OEM
Mfr # ORV4540 | Wright’s # CEN ORV4540
1/5HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1650 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
ORV4540
Wright's #
CEN ORV4540
Specifications
C Dim
10.44"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
42Y
Frequency
60 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
B
kW
0.15kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
2.5
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1650
Service Factor
1
Shaft Diameter
0.5"
Speed
1650
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Enclosed Lead End End-Frame and Opposite Lead End, Semi-Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatВ” Leads with AMP PINS, 26″ Leads with Female Spade Terminals
Lug Mount Opposite Lead End
1/5HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1650 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
