Century

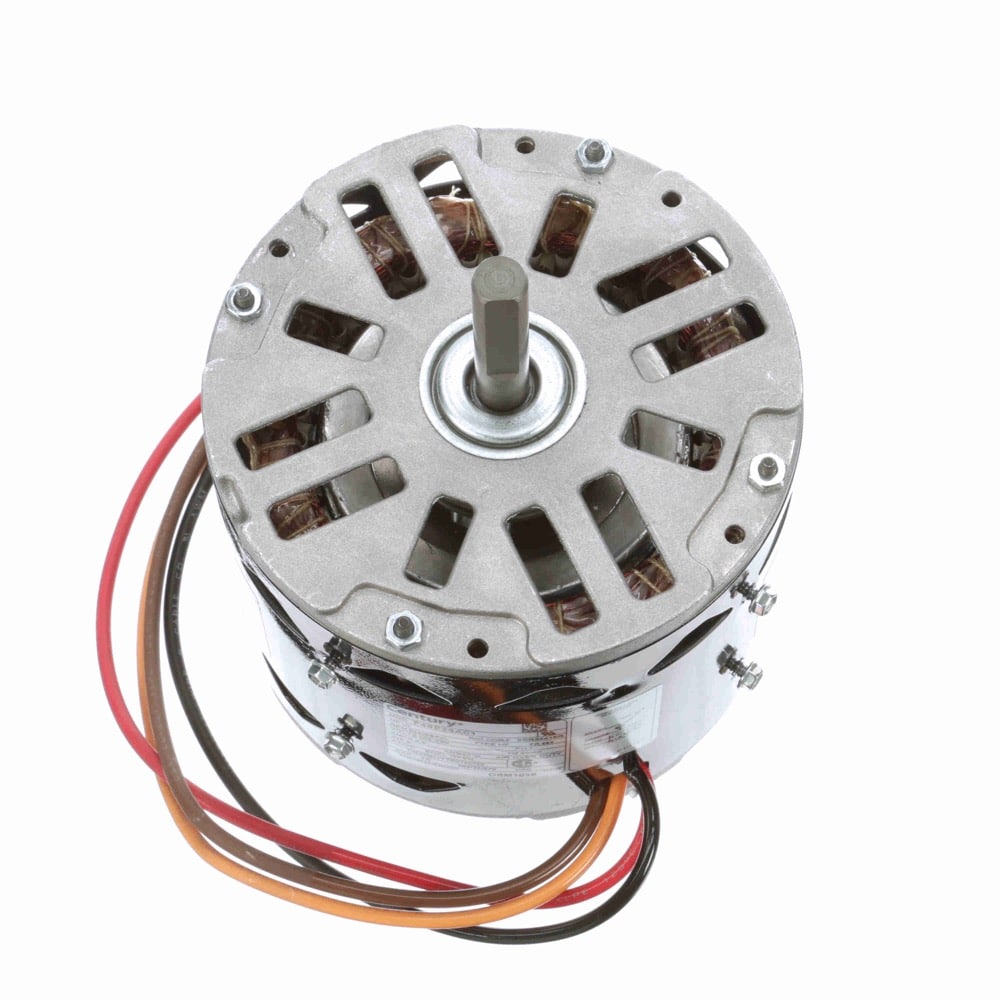

1/3HP PSC 48Y ODP 2spd 825 CCWSE 208-230V 10uF OEM
Mfr # ORM1038 | Wright’s # CEN ORM1038
1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
ORM1038
Wright's #
CEN ORM1038
Specifications
C Dim
6.73"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
8
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
2.8
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flat϶” Leads with Flag Terminals
Mounting Holes in Shell
1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 825 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
