Century
1/3HP PSC 48Y ODP 4spd 1075 CCWSE 208-230V 5uF OEM
Mfr # OLE1036H | Wright’s # CEN OLE1036H

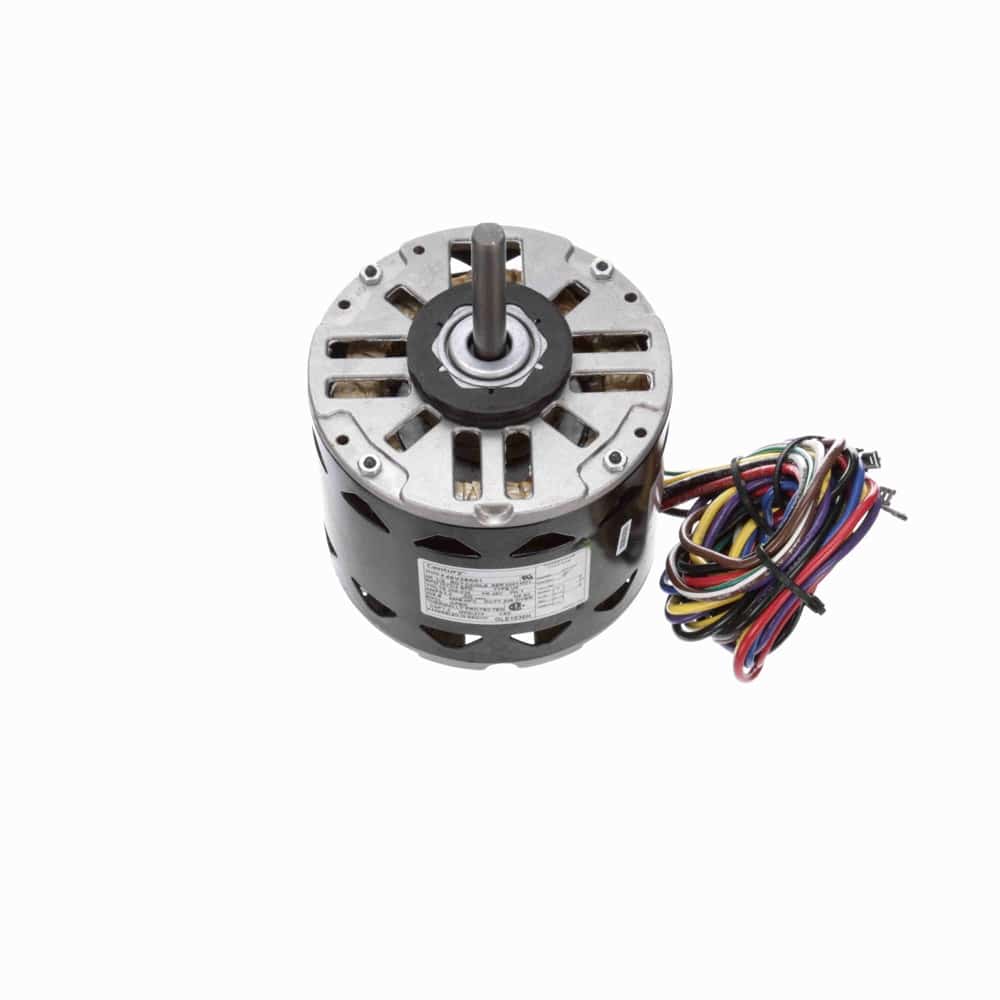

1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 4 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OLE1036H
Wright's #
CEN OLE1036H
Specifications
C Dim
8.19"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
4
Overload Protection
Automatic
Phase
1
Rated Current
2.6
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЗ” Leads with Female Spade Terminal
Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)
1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 4 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
