Century

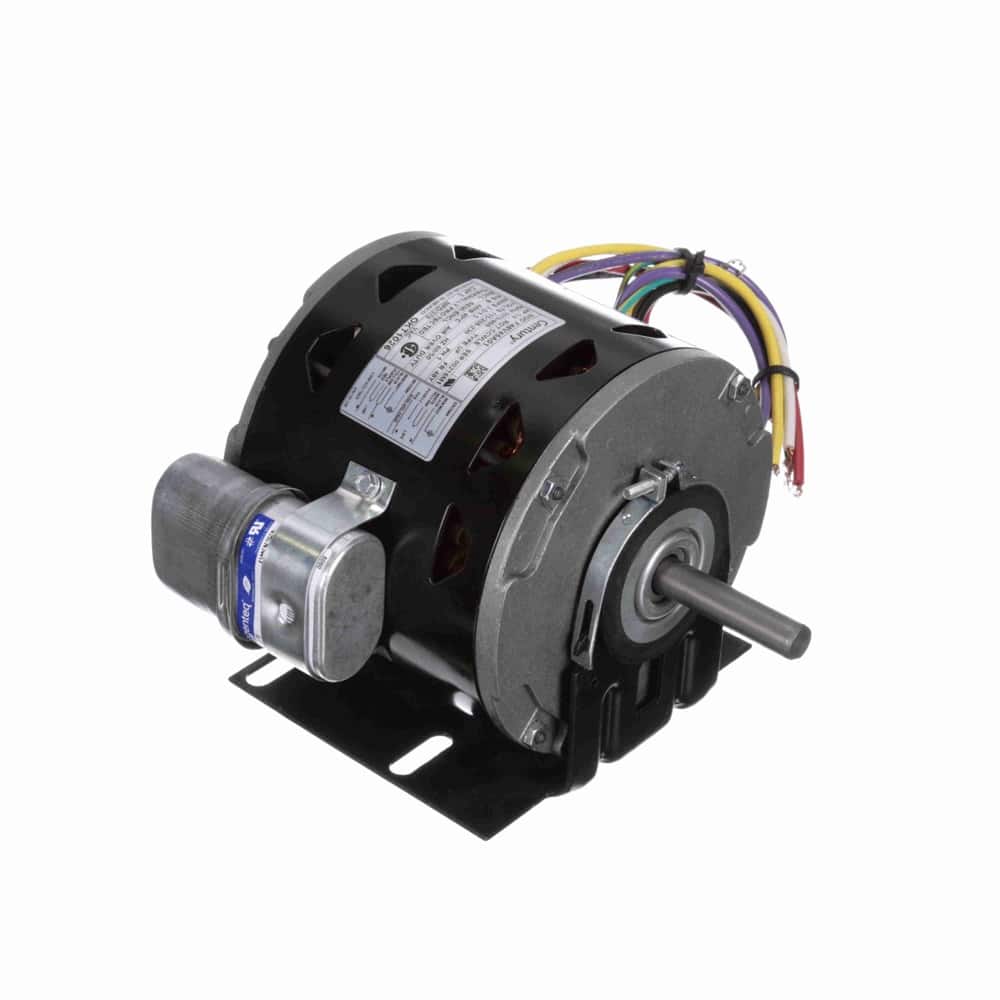

1/4HP PSC 48Y TE 1075 CCWSE 115/208-230V 5uF-inc OEM
Mfr # OKT1026 | Wright’s # CEN OKT1026
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115/208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OKT1026
Wright's #
CEN OKT1026
Specifications
C Dim
7.66"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.0/1.5
Rated Voltage
115/208-230
Rotation
Counterclockwise Lead End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075/900
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Flat϶” Leads
Resilient Base
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115/208-230V, TEAO Enclosure
