Century
1/2HP 3PH 56 TE 1200 230/460V CF
Mfr # OKR1096V1 | Wright’s # CEN OKR1096V1

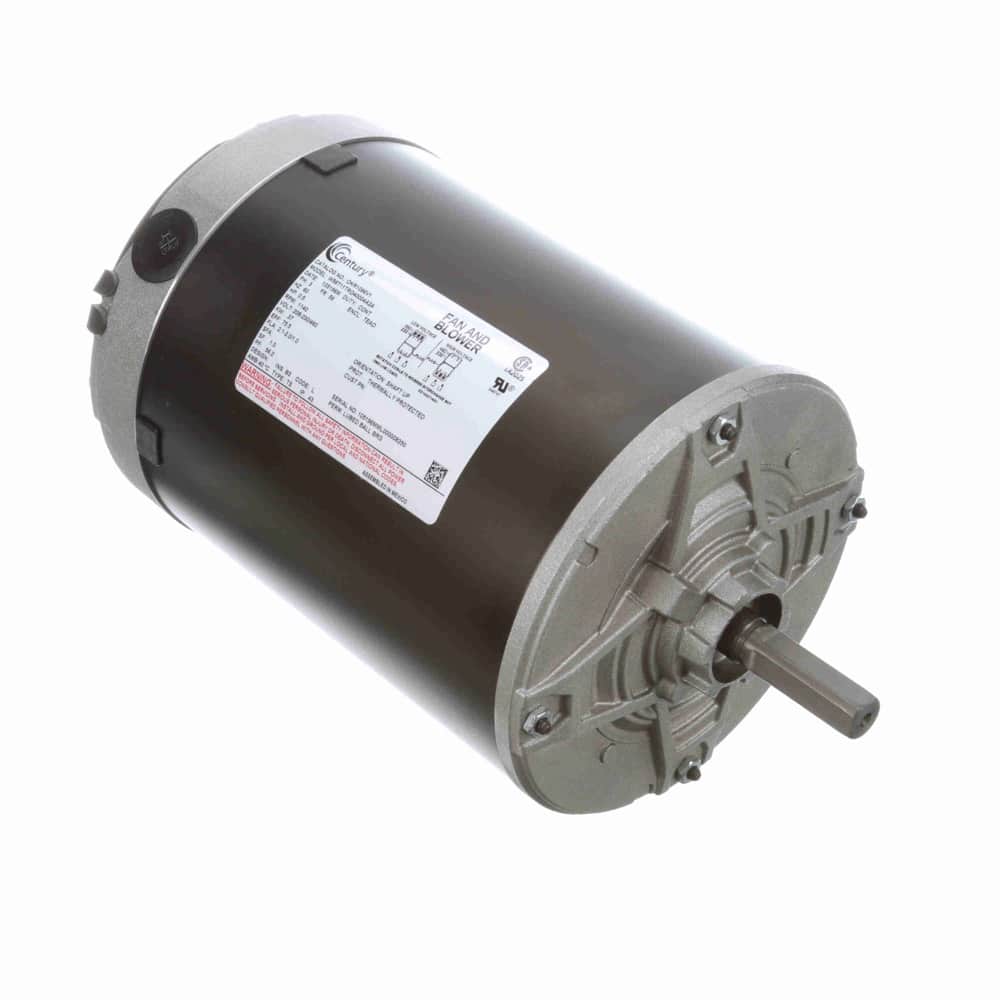

1/2HP Condenser Fan Motor, 3 Phase, 56 Frame, 1140 RPM, 1 Speed, Three Phase, 230/460V, TEAO Enclosure
$479.18
Product Information
Brand Century
Mfr # OKR1096V1
Wright's # CEN OKR1096V1
Country of Origin MEX
Specifications
C Dim 11.96"
Electrical Type Three Phase
Enclosure TEAO
Full Load Efficiency 75.5
Frame 56
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 2.0/1.0
Rated Voltage 230/460
Rotation Reversible
RPM 1140
Service Factor 1
Shaft Diameter 0.625"
Speed 1200
Starting Method
