Century

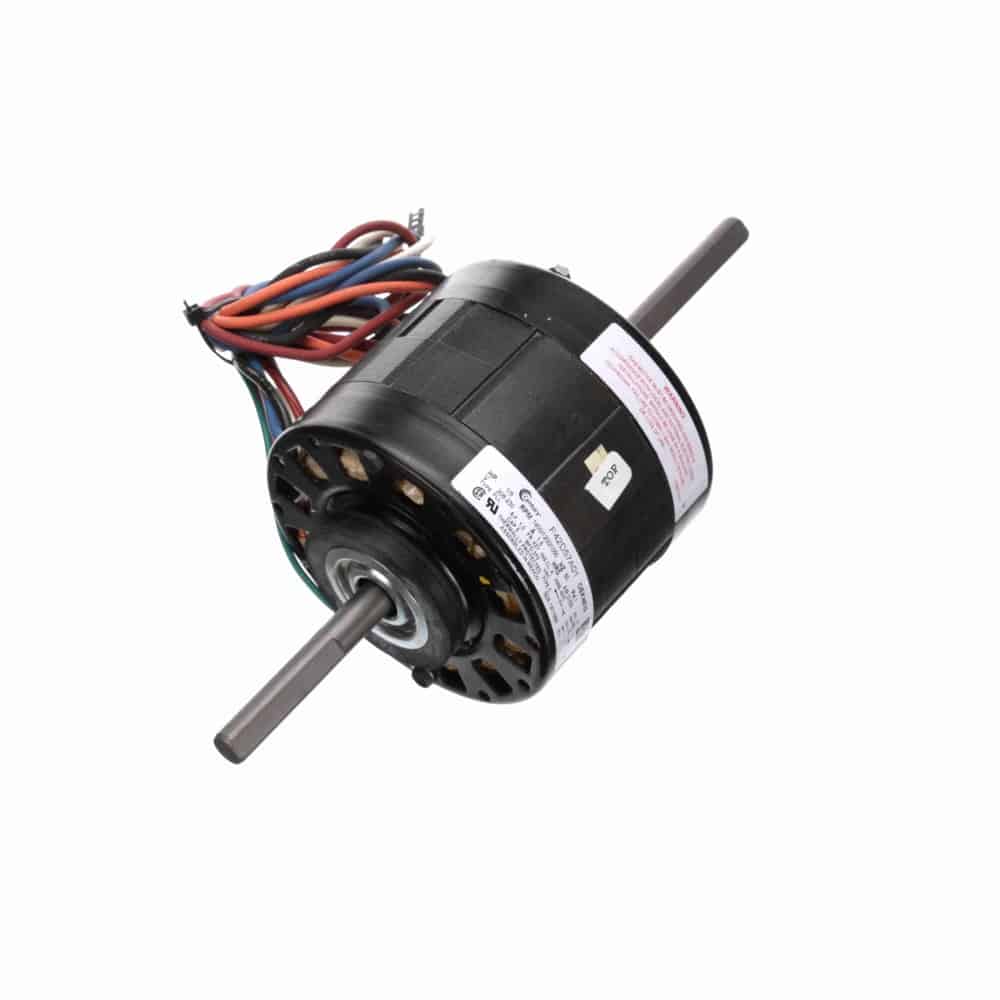

1/5HP PSC 42Y TE 3spd 1400 CCWSE 208-230V 5uF OEM
Mfr # OEK4510 | Wright’s # CEN OEK4510
1/5HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1400 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OEK4510
Wright's #
CEN OEK4510
Country of Origin
MEX
Specifications
C Dim
15"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
42Y
Frequency
60 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
A
kW
0.15kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
1.6
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
1400
Service Factor
1
Shaft Diameter
0.5"
Speed
1400/1200/1050
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Lead End End-Frame, Enclosed Opposite Lead End End-Frame and Semi-Enclosed Shell, Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatЈ” Leads with Female Spade Terminals
Resilient Ring Mount
1/5HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1400 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
