Century

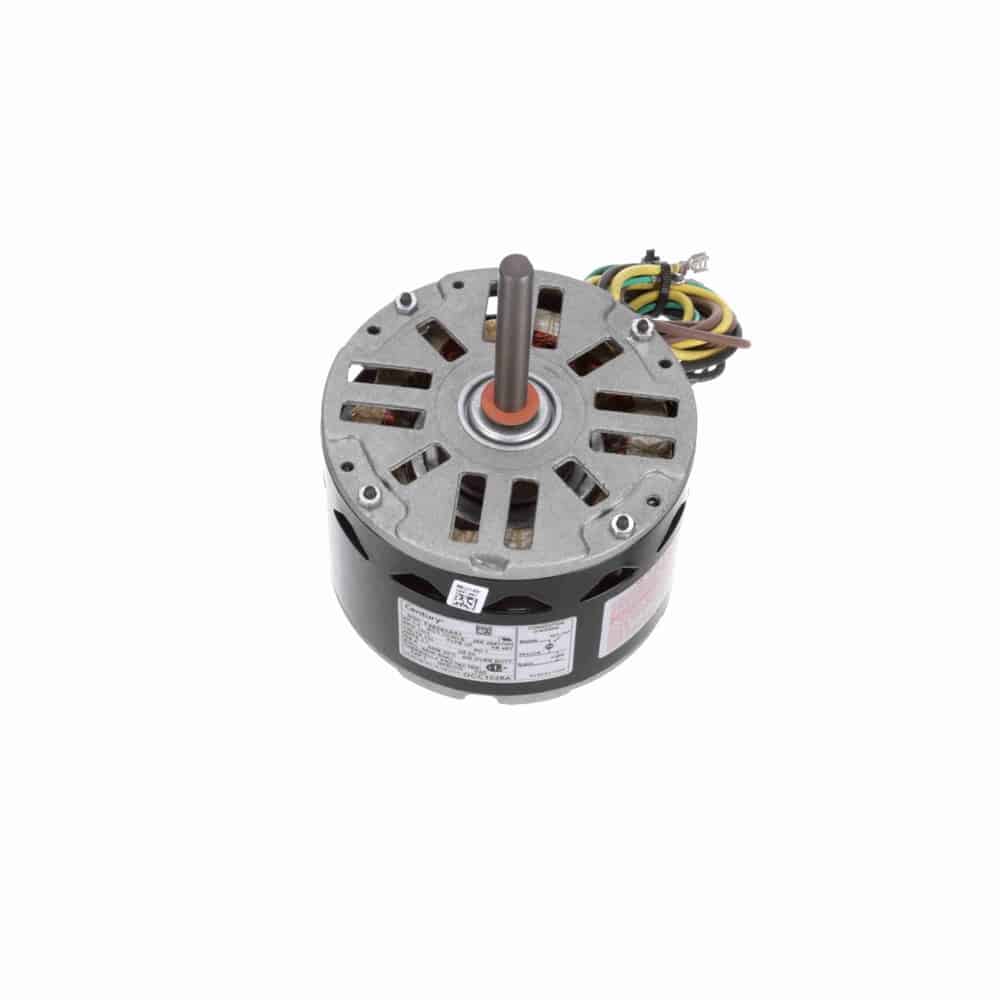

1/4HP PSC 48Y TE 1075 CCWSE 230V 5uF OEM
Mfr # OCC1026A | Wright’s # CEN OCC1026A
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OCC1026A
Wright's #
CEN OCC1026A
Specifications
C Dim
7.11"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
A
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.1
Rated Voltage
230
Rotation
Counterclockwise Lead End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End and Opposite Shaft End End-Frame, Semi-Enclosed Shell, Air over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЅ” Leads with Female Spade Terminals
Belly Band Mount (Belly Band Not Included)
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
