Century

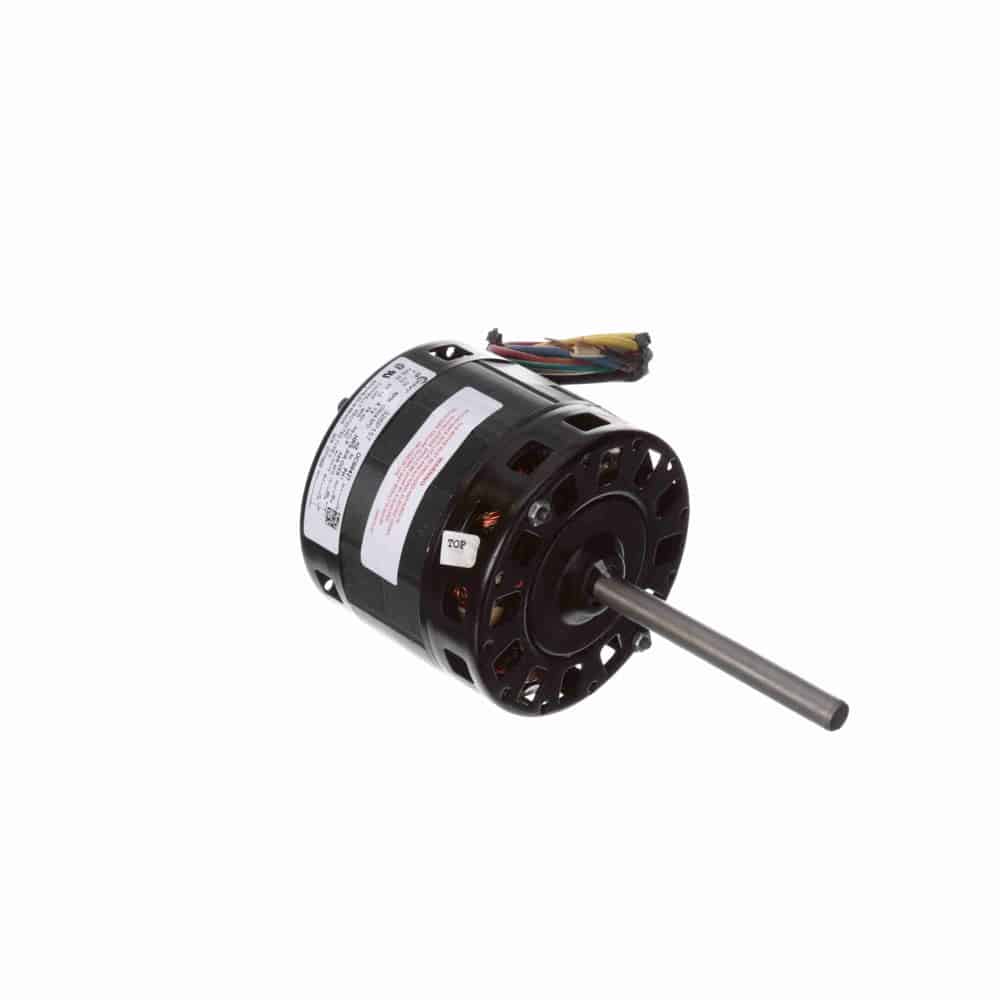

1/5HP ShP 42Y ODP 4spd 1050 CWSE 115V OEM
Mfr # OCB6427 | Wright’s # CEN OCB6427
1/5HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1050 RPM, 4 Speed, Shaded Pole, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OCB6427
Wright's #
CEN OCB6427
Specifications
C Dim
9.2"
Electrical Type
Shaded Pole
Enclosure
ODP
Frame
42Y
Frequency
60 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
B
kW
0.15kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
4
Overload Protection
Automatic
Phase
1
Rated Current
7.8
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flatϴ” Leads
Belly Band Mount
1/5HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1050 RPM, 4 Speed, Shaded Pole, 115V, ODP Enclosure
