Century

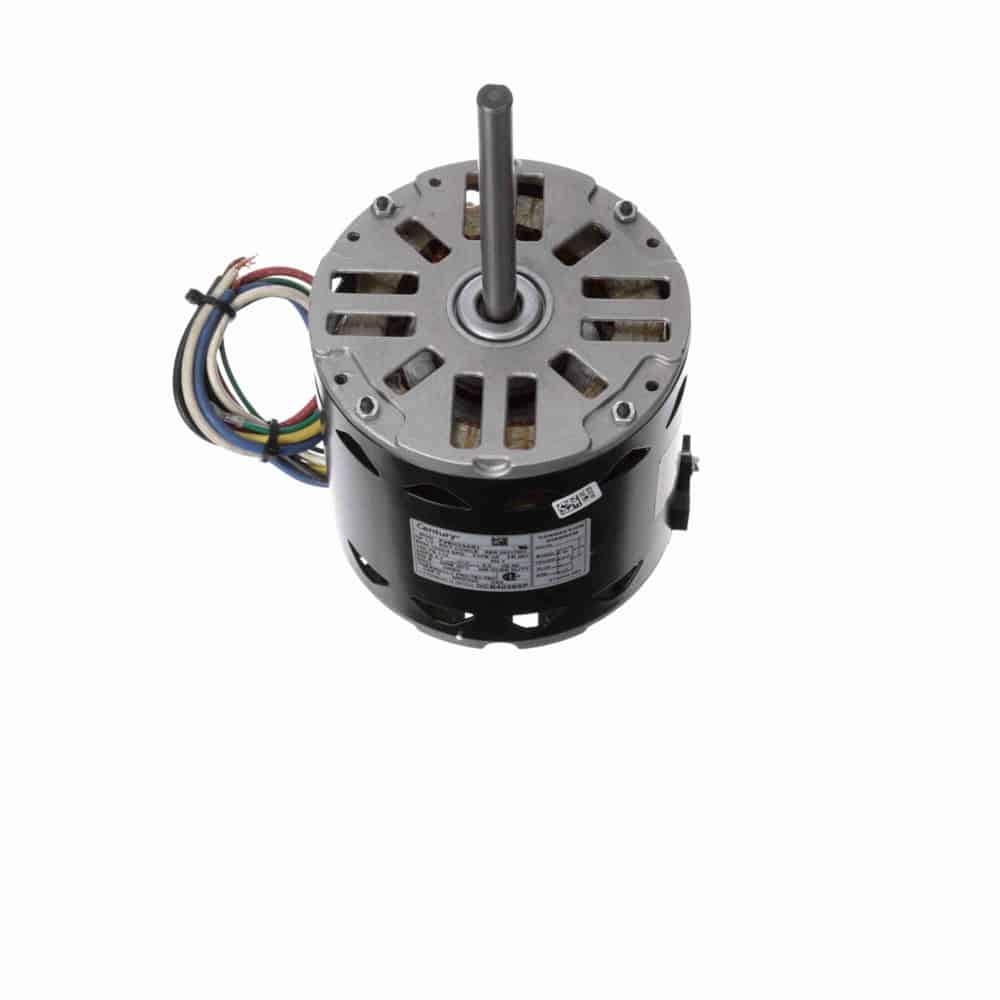

1/3HP PSC 48Y ODP 4spd 1050 CCWSE 115V 5uF-inc OEM
Mfr # OCB4036SP | Wright’s # CEN OCB4036SP
1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1050 RPM, 4 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OCB4036SP
Wright's #
CEN OCB4036SP
Specifications
C Dim
9.98"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
4
Overload Protection
Automatic
Phase
1
Rated Current
5.7
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-250 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flatϴ” Leads
Belly Band Mount (Belly Band Not Included)
1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1050 RPM, 4 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
