Century

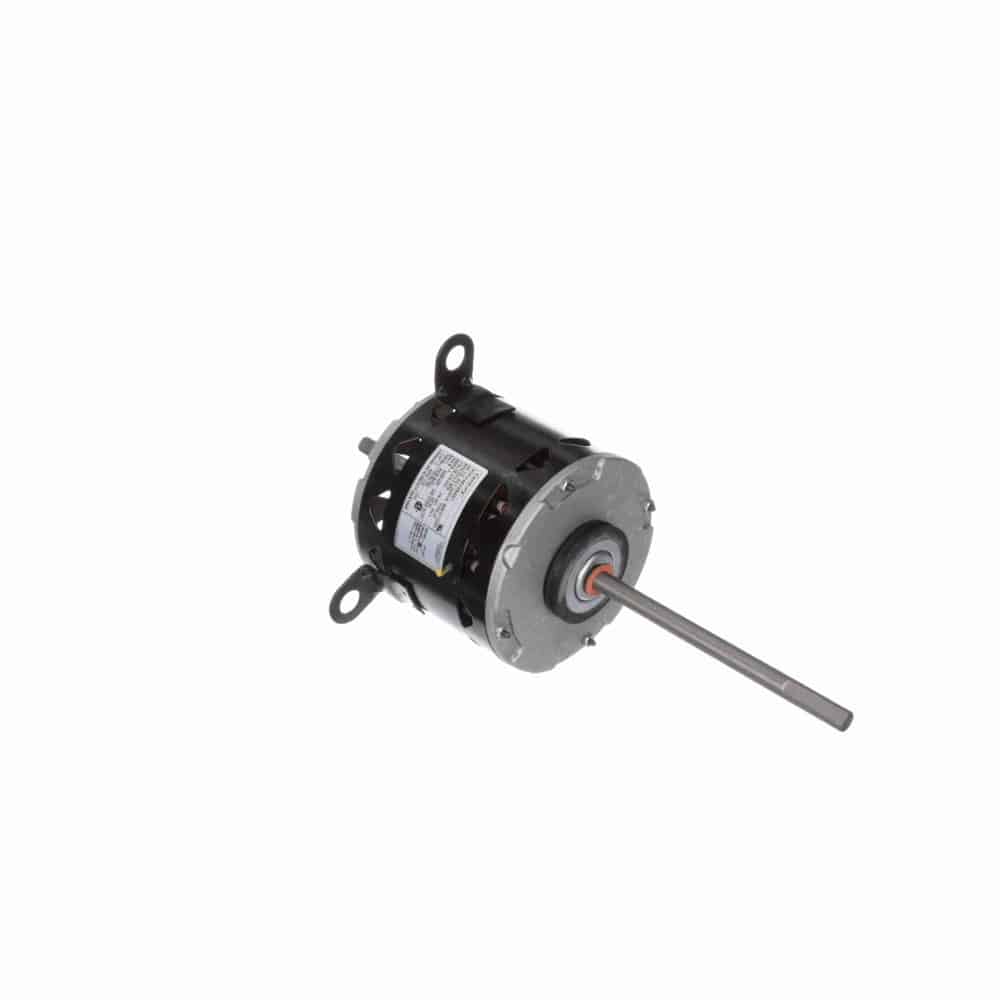

1/2HP PSC 48Y TE 3spd 1075 CCWSE 208-230V 5uF OEM
Mfr # OCB1056 | Wright’s # CEN OCB1056
1/2HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OCB1056
Wright's #
CEN OCB1056
Country of Origin
MEX
Specifications
C Dim
15.25"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
3
Rated Voltage
208-230
Rotation
Counterclockwise Lead End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Lead End End-Frame and Shell, Enclosed Opposite Lead End End-Frame, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatЇ” Leads with Female Spade Terminals
Lug Mount
1/2HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
