Century

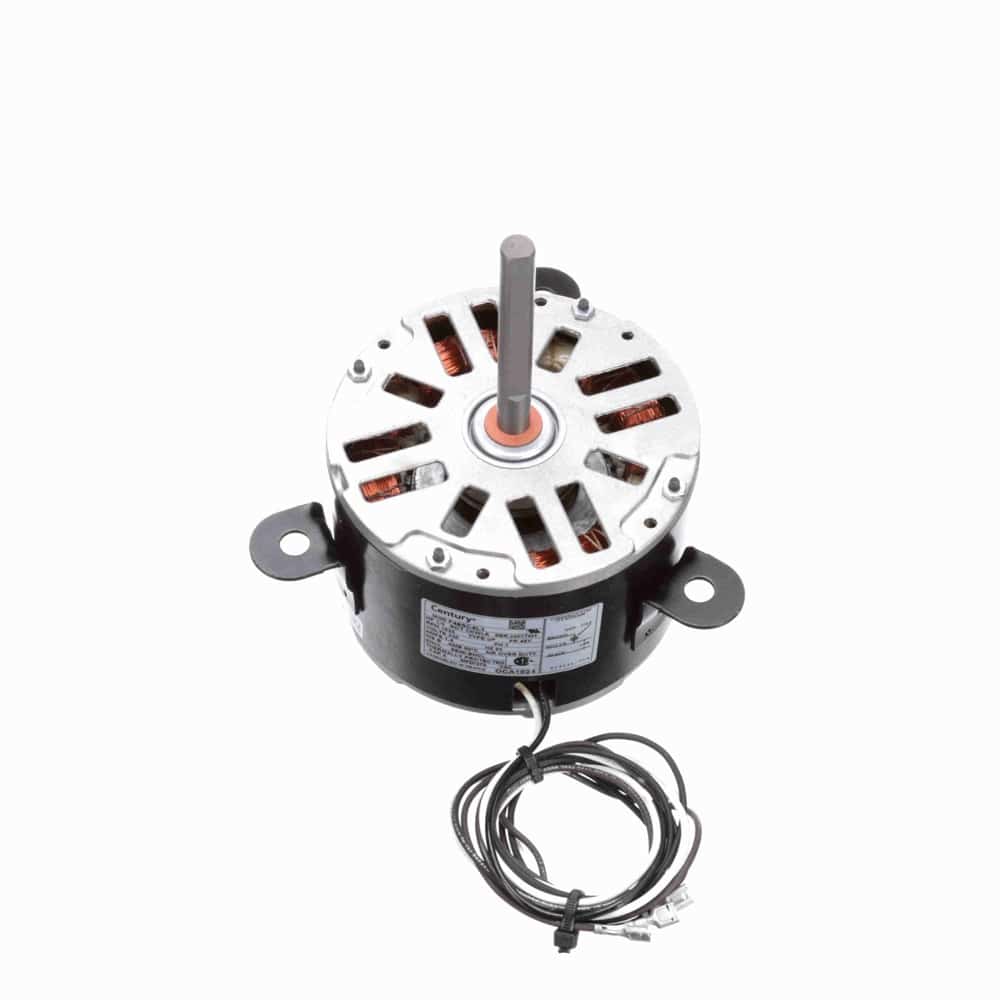

1/4HP PSC 48Y TE 1625 CCWSE 230V 4uF OEM
Mfr # OCA1024 | Wright’s # CEN OCA1024
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OCA1024
Wright's #
CEN OCA1024
Specifications
C Dim
7.86"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.4
Rated Voltage
230
Rotation
Counterclockwise Lead End
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Opposite Shaft End End-Frame, Enclosed Shaft End End-Frame and Shell, Air Over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЏ” Leads with Quick Connect Terminals
Lug Mount
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
