Century

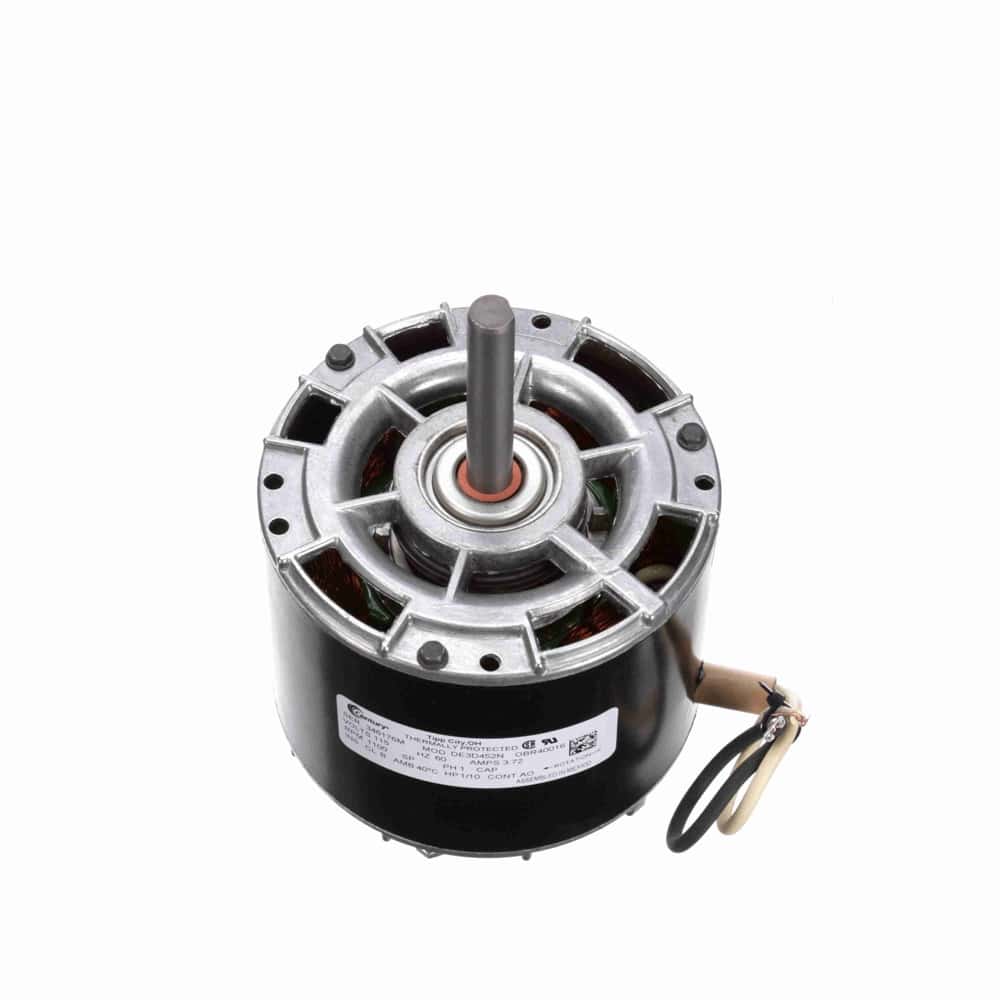

1/10HP ShP 42Y TE 1100 CWSE 115V OEM

Name: 1/10HP ShP 42Y TE 1100 CWSE 115V OEM
Brand: Century
SKU: 30395
Price: 137.68 USD
Availability: OutOfStock

Mfr # OBR40016 | Wright’s # CEN OBR40016

1/10HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1100 RPM, 1 Speed, Shaded Pole, 115V, TEAO Enclosure

Product Information

Brand Century

Mfr # OBR40016

Wright's # CEN OBR40016

Specifications

C Dim 6.68"

Electrical Type Shaded Pole

Enclosure TEAO

Frame 42Y

Frequency 60 Hz

HP 0.1 HP

HP2 1/10 HP

Insulation Class B

kW 0.07kW

Material Rolled Steel

Max Ambient 40°C

Number of Poles 6

Number of Speeds 1

Overload Protection Automatic

Phase 1

Rated Current 3.72

Rated Voltage 115

Rotation Counterclockwise Lead End

RPM 1100

Service Factor 1

Shaft Diameter 0.5"

Speed 1100

Starting Method

Description

OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flatl” Leads
Belly Band Mount (Belly Band Not Included)

1/10HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1100 RPM, 1 Speed, Shaded Pole, 115V, TEAO Enclosure
