Century

1/8HP 1PH 48Y 4P ODP 1725 115V AOL CIRC

Name: 1/8HP 1PH 48Y 4P ODP 1725 115V AOL CIRC
Brand: Century
SKU: 30393
Availability: InStock

Mfr # OBG2004 | Wright’s # CEN OBG2004

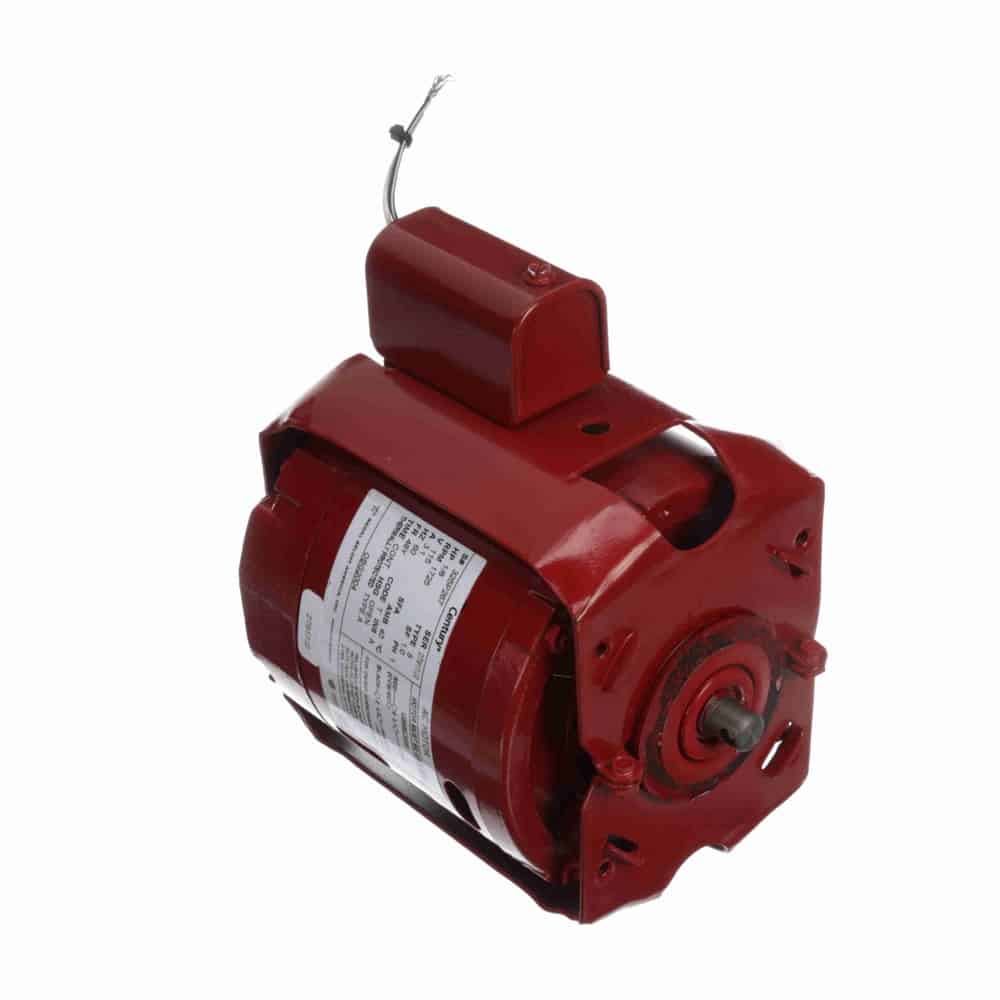

1/8HP Circulator Pump Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure

2 in stock

Sign in to access special pricing and availability.

$243.58

Product Information

Brand Century

Mfr # OBG2004

Wright's # CEN OBG2004

Country of Origin MEX

C Dim 6.84"

Electrical Type Split Phase

Enclosure ODP

Frame 48Y

Frequency 60 Hz

HP 0.13 HP

HP2 1/8 HP

Insulation Class A

kW 0.1kW

Material Rolled Steel

Max Ambient 40°C

Number of Poles 4

Number of Speeds 1

Overload Protection Automatic

Phase 1

Rated Current 3.1

Rated Voltage 115

Rotation Reversible

RPM 1725

Service Factor 1

Shaft Diameter 0.5"

Speed 1725

Starting Method

Automatic reset thermal protector

1/8HP Circulator Pump Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure
