Century

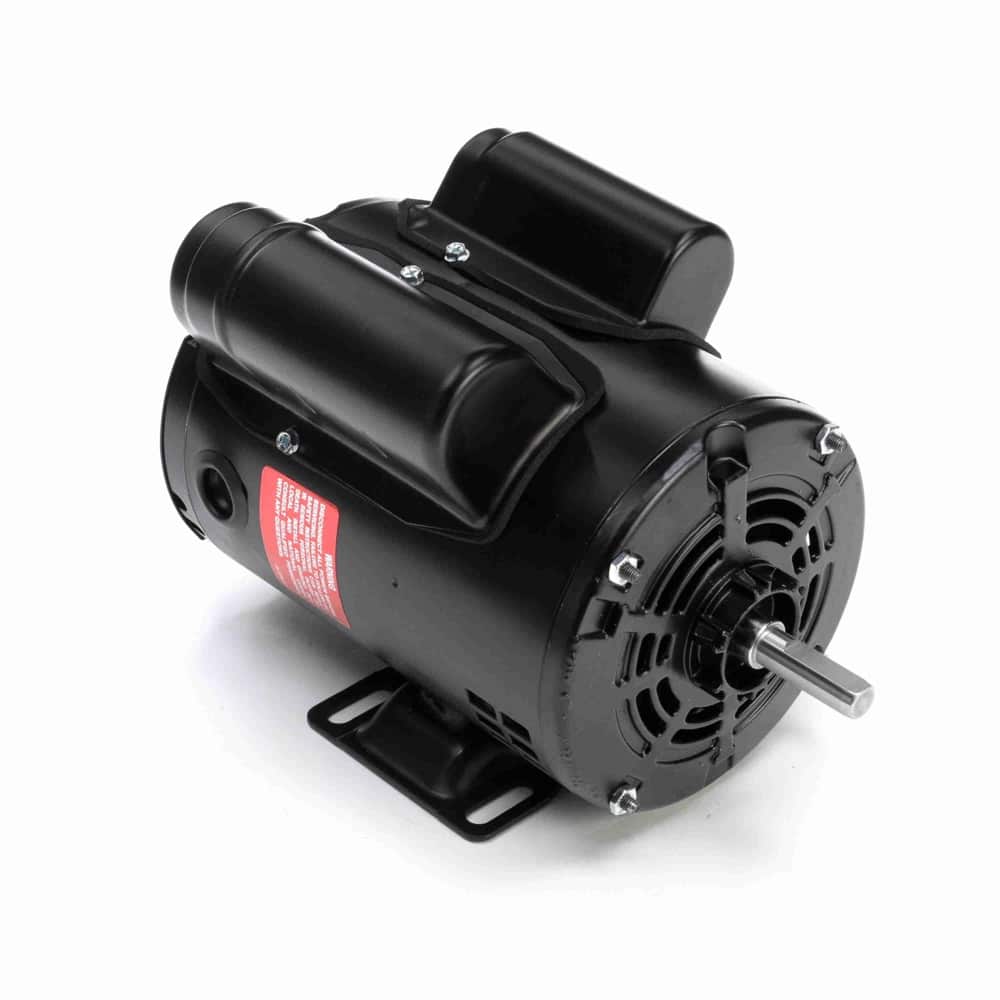

1/4HP 1PH 5.6″ 4P ODP 1800 115/230V OBSO
Mfr # OB1024ES | Wright’s # CEN OB1024ES
1/4HP 1-Phase General Purpose Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OB1024ES
Wright's #
CEN OB1024ES
Country of Origin
MEX
Specifications
C Dim
10.34"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
ODP
Frame
48
Frequency
60/50 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
2.4/1.2
Rated Voltage
115/230
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1800
Starting Method
