Century

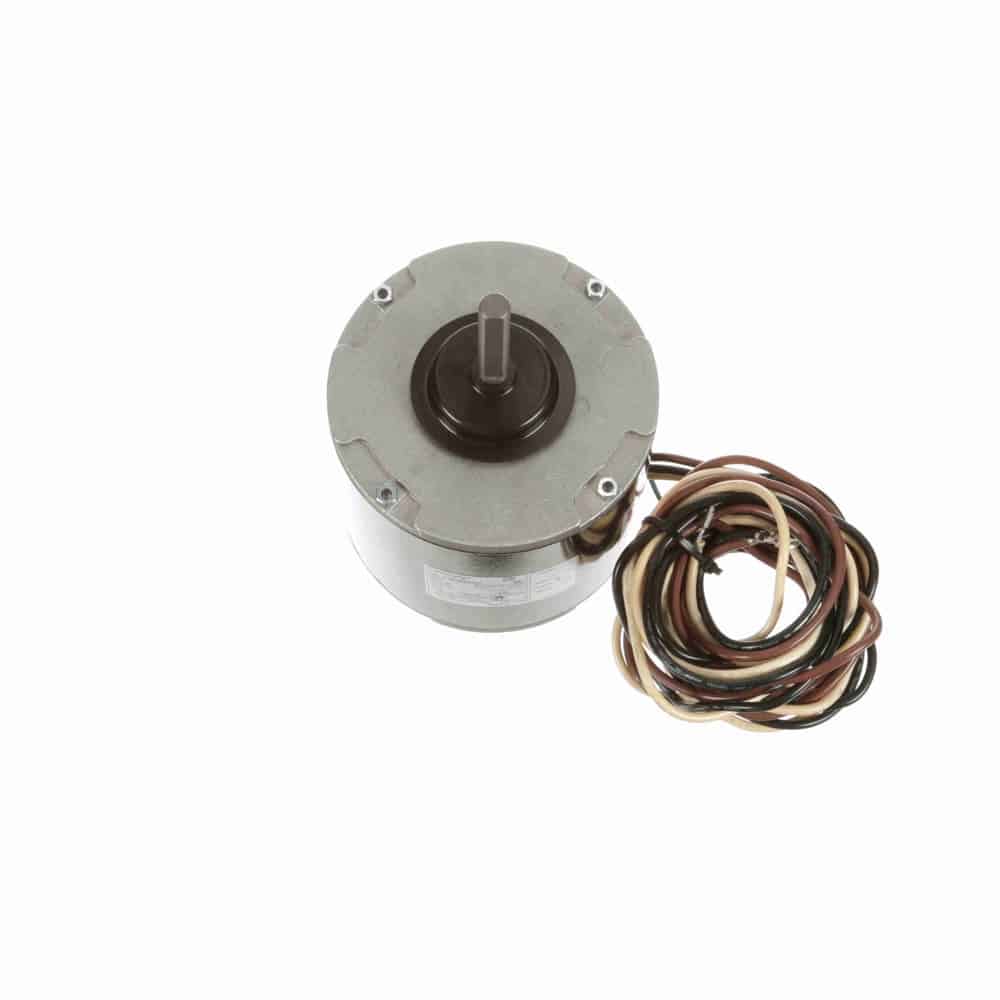

1/3HP PSC 48Y TE 1100 CCWSE 460V 5uF OEM
Mfr # OAN010 | Wright’s # CEN OAN010
1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OAN010
Wright's #
CEN OAN010
Country of Origin
MEX
Specifications
C Dim
8"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1
Rated Voltage
460
Rotation
Counterclockwise Lead End
RPM
1100
Service Factor
1
Shaft Diameter
0.5"
Speed
1100
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Opposite Shaft End End-Frame, Enclosed Shaft End End-Frame and Shell, Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Flat❼” Leads with Quick Connect Terminals
Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
1/3HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
