Century

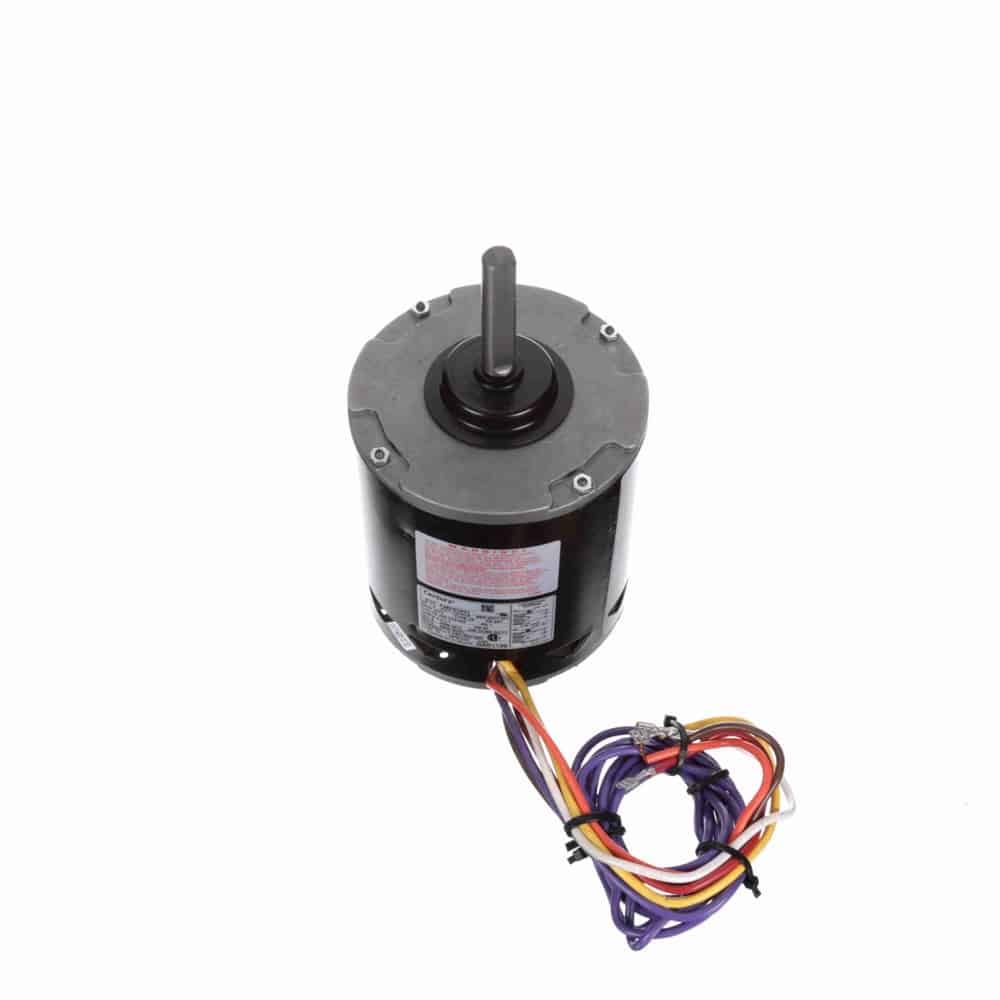

1HP PSC 48Y TE 1075 CCWSE 208-230/460V 15uF OEM
Mfr # OAD1106 | Wright’s # CEN OAD1106
1HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230/460V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OAD1106
Wright's #
CEN OAD1106
Country of Origin
MEX
Specifications
C Dim
10.05"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
6.2/3.1
Rated Voltage
208-230/460
Rotation
Counterclockwise Lead End
RPM
1075
Service Factor
1
Shaft Diameter
0.625"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Opposite Shaft End End-Frame and Shell, Enclosed Shaft End End-Frame and Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/8″ Diameter Shaft with Double Flatϴ” Leads
Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
1HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230/460V, TEAO Enclosure
