Century

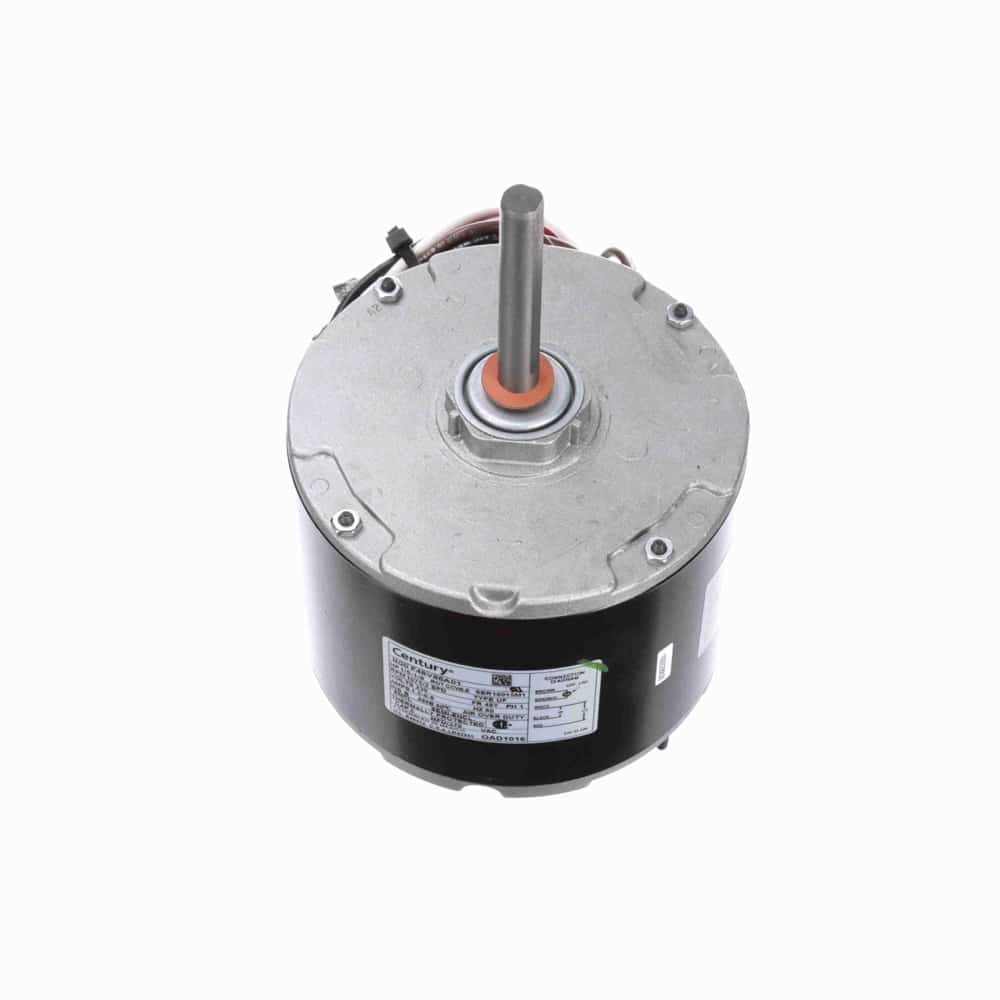

1/5HP PSC 48Y TE 2spd 1075 CCWSE 230V 5uF OEM
Mfr # OAD1016 | Wright’s # CEN OAD1016
1/5-1/8HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
OAD1016
Wright's #
CEN OAD1016
Country of Origin
MEX
Specifications
C Dim
8.11"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.2 HP
HP2
1/5-1/8 HP
Insulation Class
B
kW
0.15kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
1.5-0.8
Rated Voltage
230
Rotation
Counterclockwise Lead End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Opposite Shaft End End-Frame, Enclosed Shaft End End-Frame and Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatГ” Leads with Quick Connect Terminals
Extended Studs Opposite Shaft End, Belly Band Mount
1/5-1/8HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 230V, TEAO Enclosure
