Century

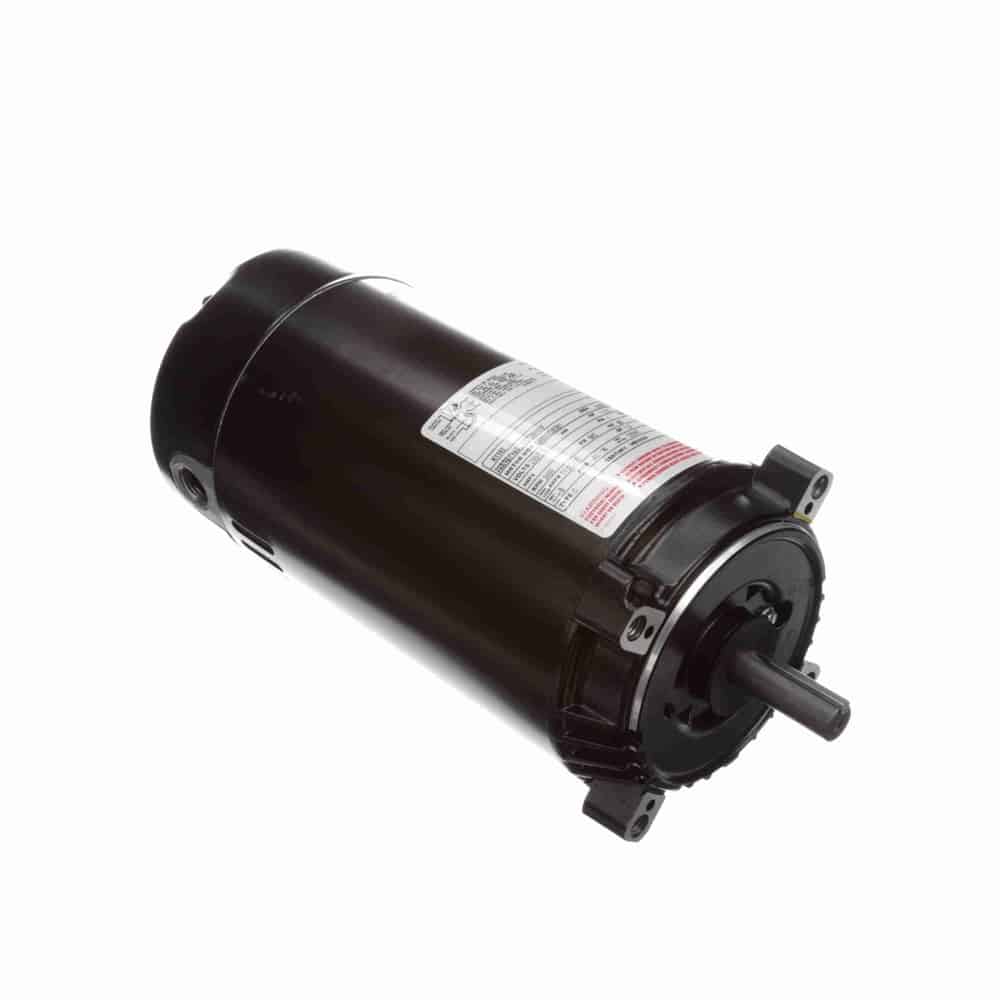

1.5HP 1PH 56C 2P ODP 3450 115/230V AOL JP
Mfr # K1152 | Wright’s # CEN K1152
1.5HP Jet Pump Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, ODP Enclosure
$402.15
Product Information
Brand
Century
Mfr #
K1152
Wright's #
CEN K1152
Country of Origin
MEX
Specifications
C Dim
13.37"
Electrical Type
Capacitor Start Induction Run
Enclosure
ODP
Frame
56C
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
11.0/22.0
Rated Voltage
115/230
Rotation
Reversible
RPM
3450
Service Factor
1.3
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
Internally mounted capacitor
Sealed switch design
Keyed shaft
1.5HP Jet Pump Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, ODP Enclosure
