Century
3HP 3PH 56Y ODP 1725 208-230/460V OEM
Mfr # H980L | Wright’s # CEN H980L

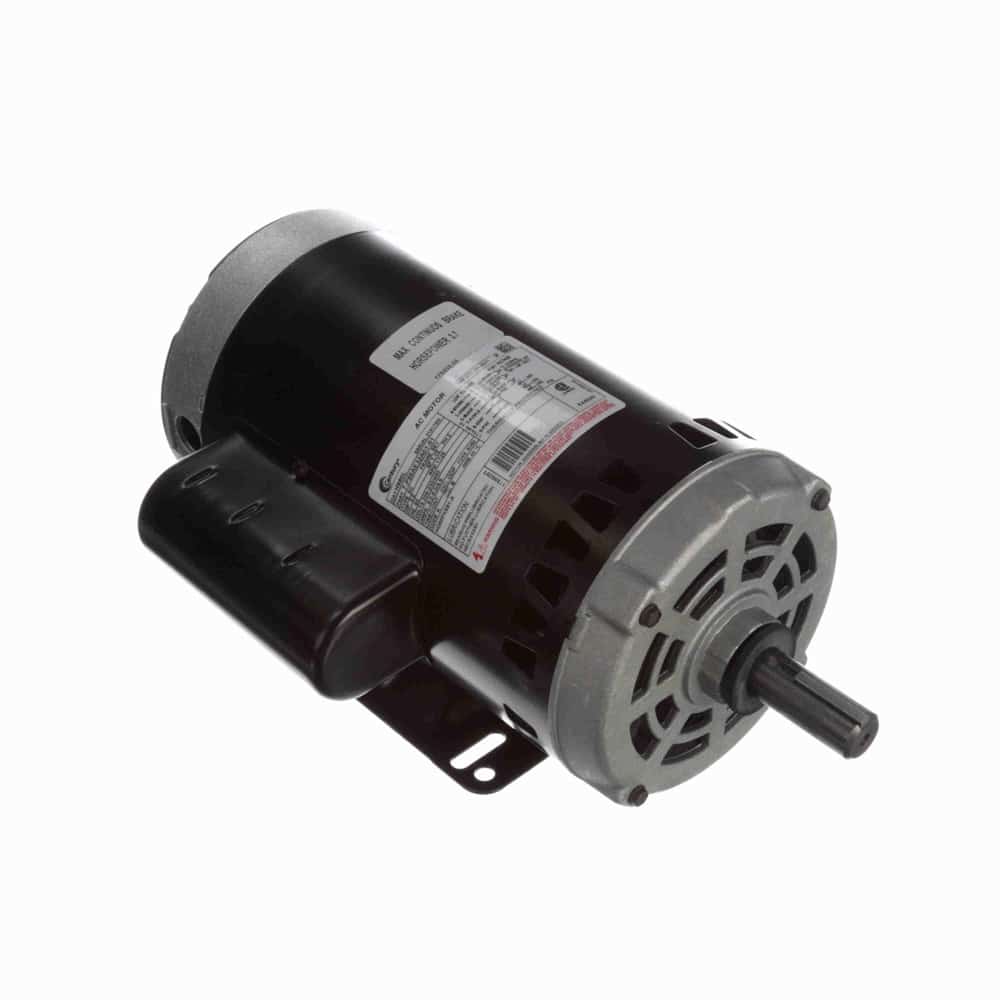

3HP OEM Replacement Motor, 3 Phase, 56Y Frame, 1725 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 208-230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand Century
Mfr # H980L
Wright's # CEN H980L
Country of Origin MEX
Specifications
C Dim 15.19"
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 3 HP
HP2 3 HP
Insulation Class B
kW 2.2kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 9.0-9.0/4.5
Rated Voltage 208-230/460
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.875"
Speed 1725
Starting Method
Description
Ball bearings
3HP OEM Replacement Motor, 3 Phase, 56Y Frame, 1725 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 208-230/460V, ODP Enclosure
