Century

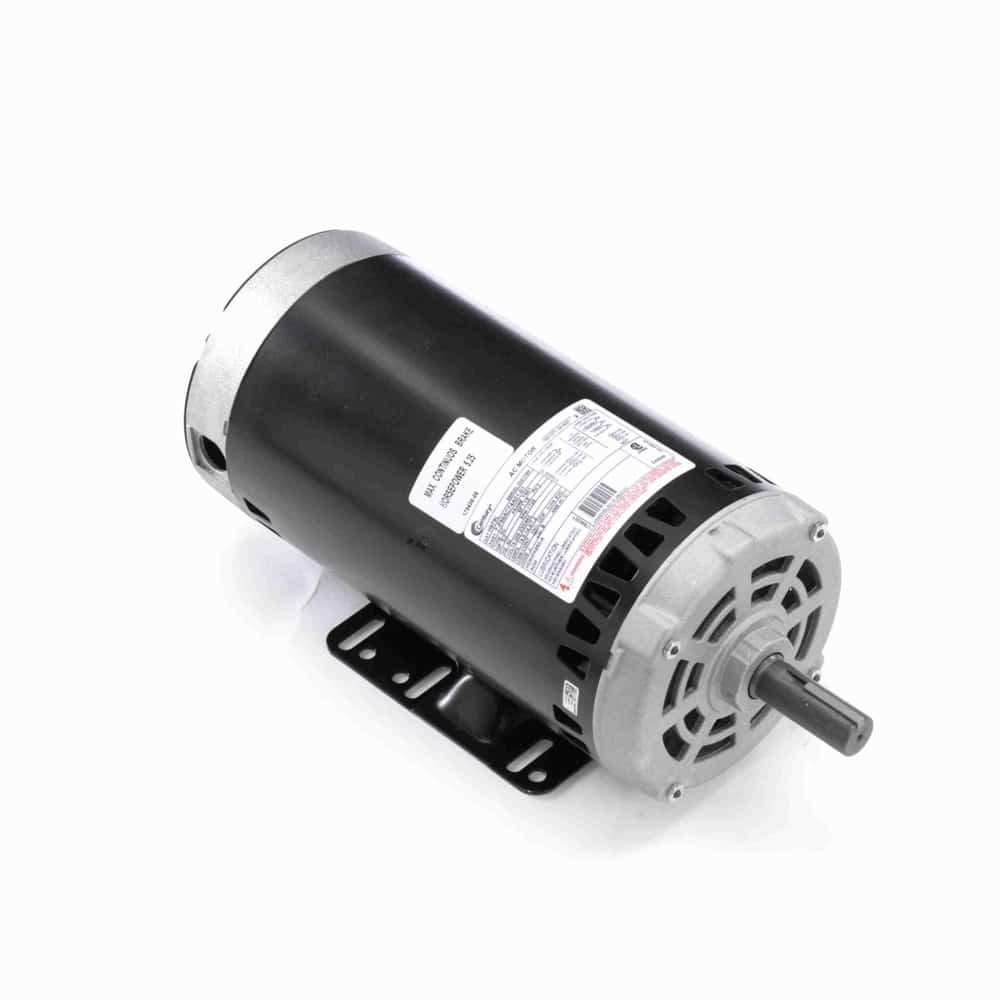

5HP 3PH 56Y ODP 1800 208-230/460V OEM
Mfr # H979L | Wright’s # CEN H979L
5HP OEM Replacement Motor, 3 Phase, 56Y Frame, 1725 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 208-230/460V, ODP Enclosure
$1,601.75
Product Information
Brand
Century
Mfr #
H979L
Wright's #
CEN H979L
Country of Origin
MEX
Specifications
C Dim
16.32"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
ODP
Frame
56Y
Frequency
60 Hz
HP
5 HP
HP2
5 HP
Insulation Class
B
kW
3.7kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
14.5-14.4/7.2
Rated Voltage
208-230/460
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.875"
Speed
1800
Starting Method
