Century

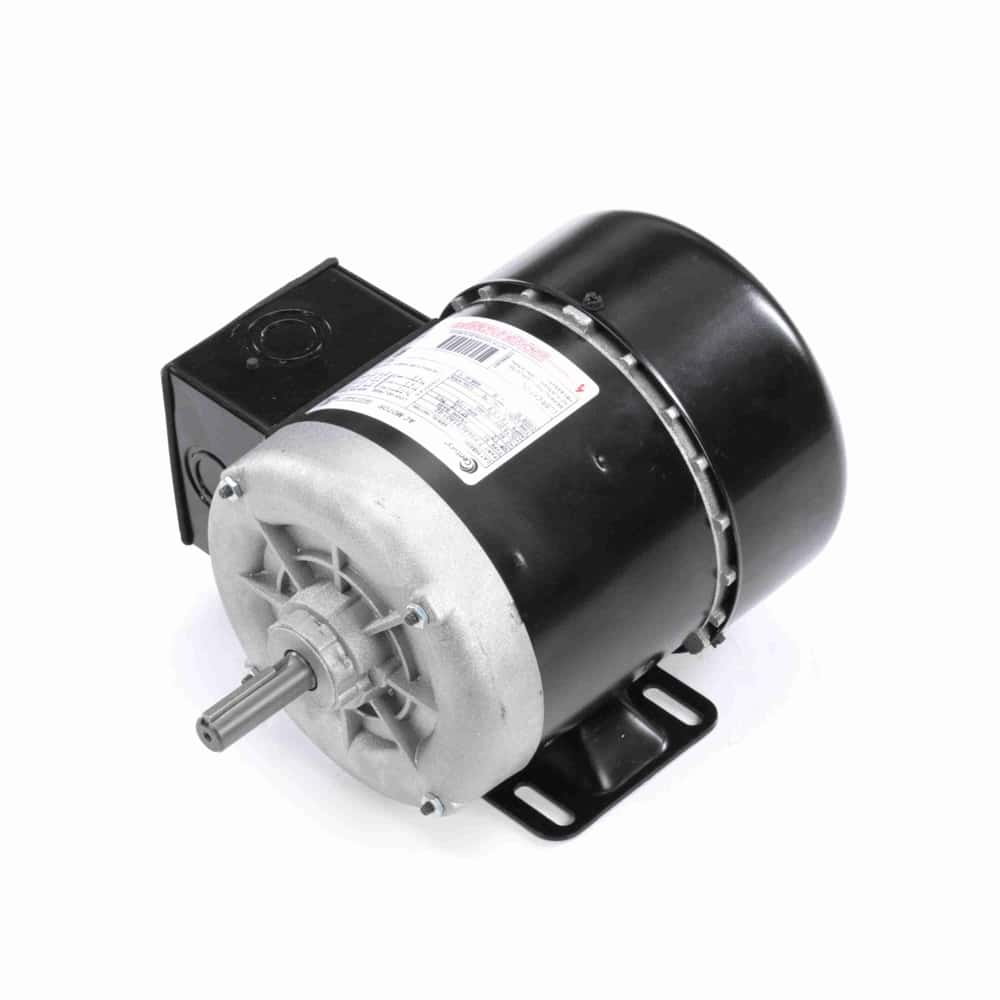

1/2HP 3PH 56 4P TEFC 1725 208-230/460V
Mfr # H868L | Wright’s # CEN H868L
1/2HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 1725 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 208-230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H868L
Wright's #
CEN H868L
Country of Origin
MEX
Specifications
C Dim
10.99"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
TEFC
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1.6-1.8/.9
Rated Voltage
208-230/460
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power specifications.
Class B or F Insulation protects motor for a maximum temperature rating.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
1/2HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 1725 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 208-230/460V, TEFC Enclosure
