Century
3HP 3PH 56HZ ODP 1750 200-230/460V BM
Mfr # H855L | Wright’s # CEN H855L

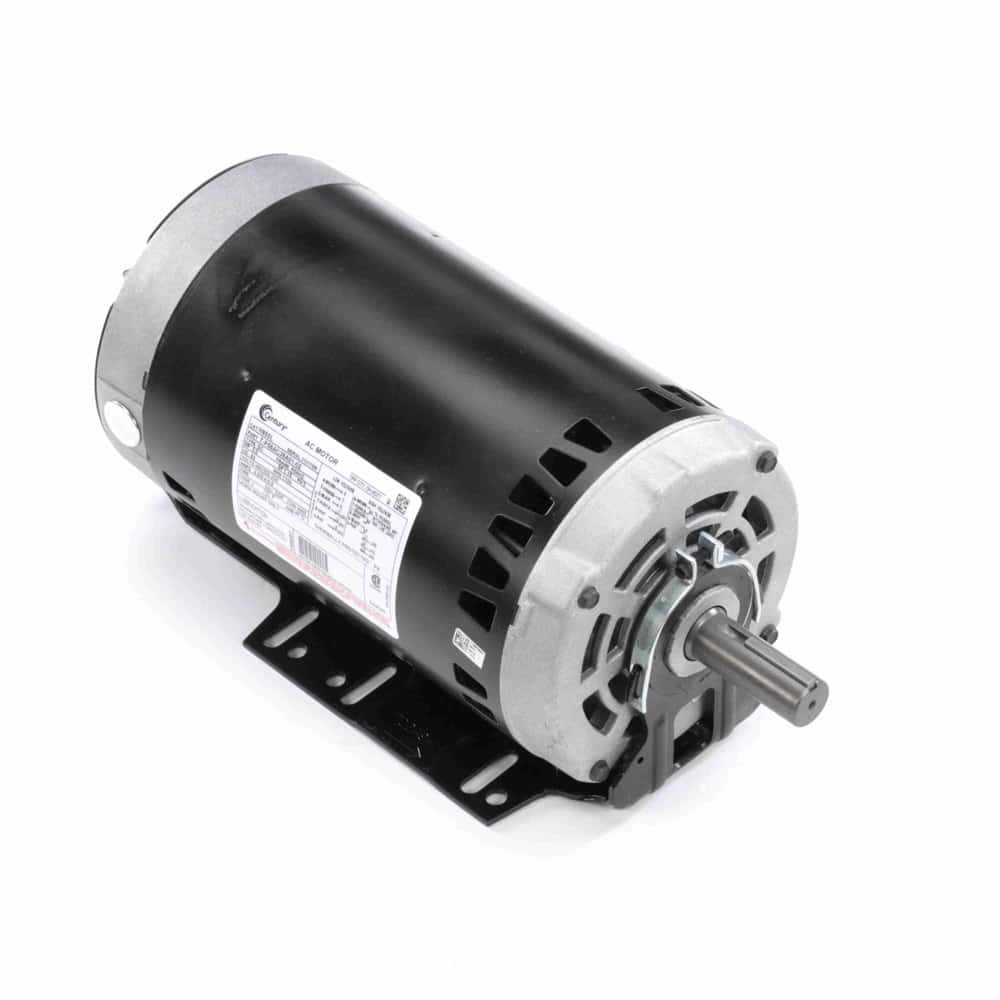

3HP Fan & Blower Motor, 3 Phase, 56HZ Frame, 1750 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, ODP Enclosure
$597.32
Product Information
Brand
Century
Mfr #
H855L
Wright's #
CEN H855L
Country of Origin
MEX
Specifications
C Dim
14.56"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
ODP
Full Load Efficiency
78.5
Frame
56HZ
Frequency
60 Hz
HP
3 HP
HP2
3 HP
Insulation Class
F
kW
2.2kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
3
Rated Current
4.5/9.4-8.9
Rated Voltage
200-230/460
Rotation
Reversible Counterclockwise
RPM
1750
Service Factor
1.15
Shaft Diameter
0.875"
Speed
1750
Starting Method
Description
Resilient Base
Single and two speed
3HP Fan & Blower Motor, 3 Phase, 56HZ Frame, 1750 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, ODP Enclosure
